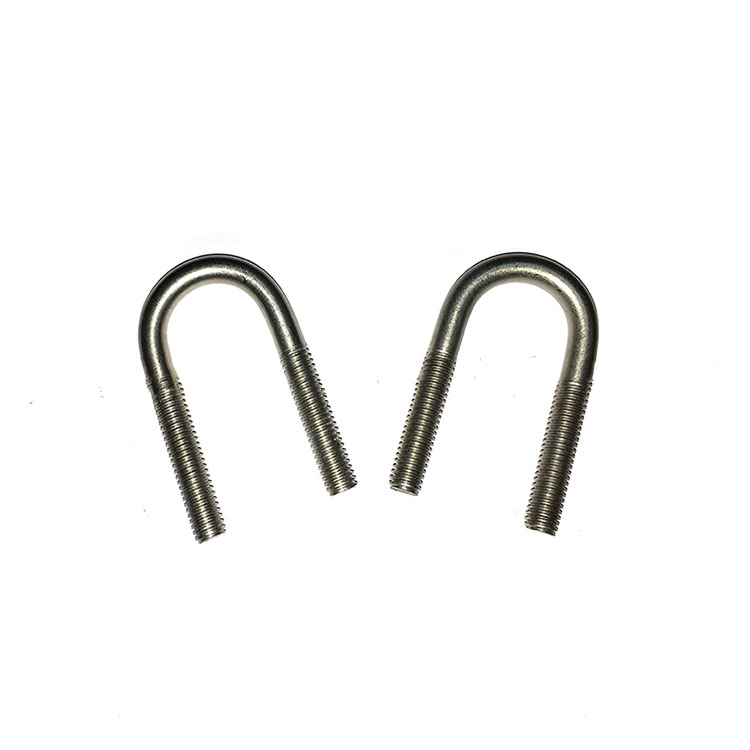

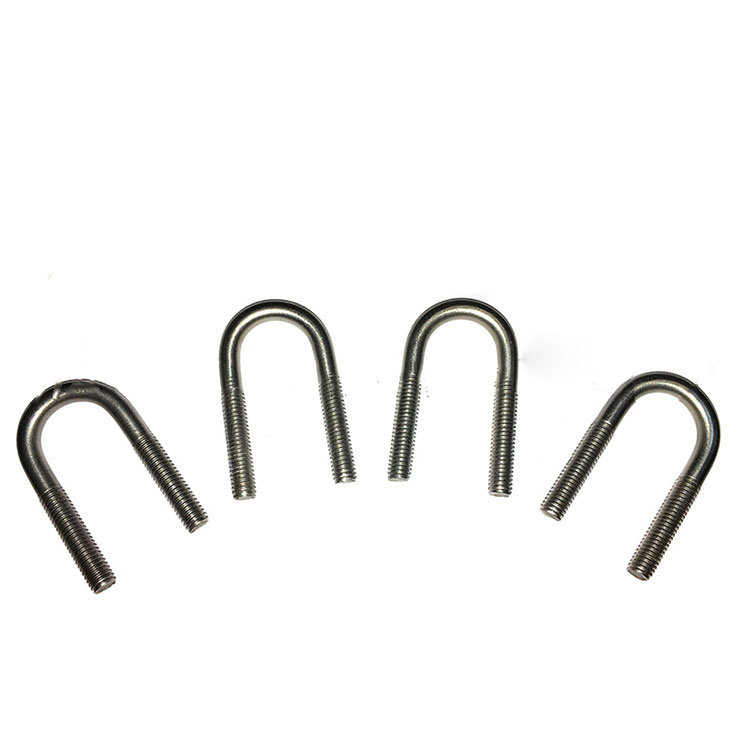

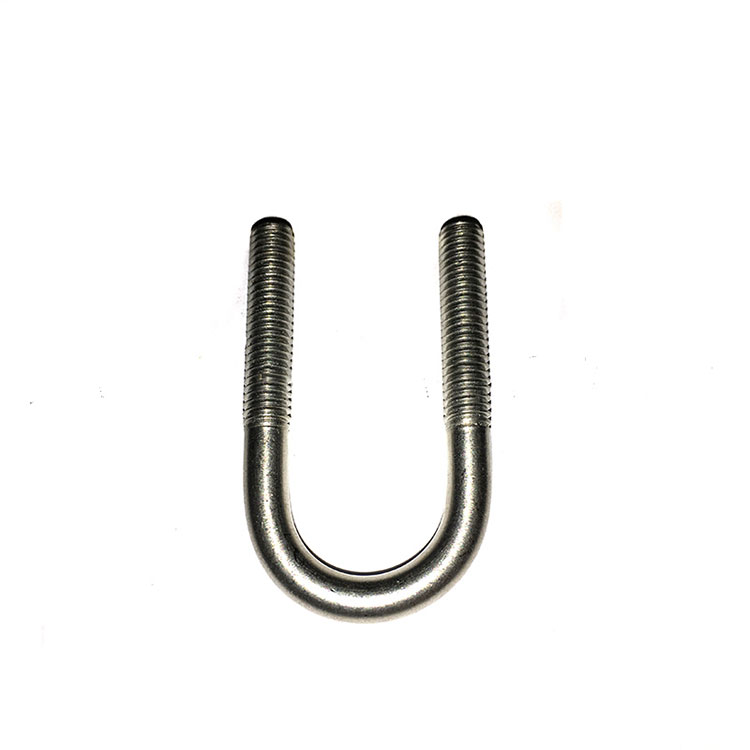

Stainless Steel A4-80 U Bolt or U Shaped Bolt

U-Bolts are U-shaped bolts with two threaded arms protruding from a curved base. Round U-Bolts are typically used for attaching pipe or steel round bar to wood or steel post. They are also used to hang wrought iron pipe in mechanical installations.

Long tangent U-Bolts are also available. Their long legs are perfect for mounting to thick flanges. Long tangent U-Bolts are basically the same thing as the standard round U-Bolt, except that they have longer legs and more thread
A U-bolt is a bolt in the shape of the letter U with screw threads on both ends.
U-bolts have primarily been used to support pipework, pipes which fluids and gasses pass through. As such, U-bolts were measured using pipe work engineering speak. A U-bolt would be described by the size of pipe it was supporting.
For example, a 40 Nominal Bore U-bolt would be asked for by pipe work engineers, and only they would know what that meant. In reality, the 40 nominal bore part bears little resemblance to the size and dimensions of the u-bolt.
The nominal bore of a pipe is actually a measurement of the inside diameter of the pipe. Engineers are interested in this because they design a pipe by the amount of fluid / gas it can transport.

As U-bolts are now being used by a much wider audience to clamp any kind of tubing / round bar then a more convenient measurement system needs to be used.

U-BOLT SPECIFICATIONS
Thread Diameter	Width Between Legs	Inside Length	Thread Length	Pipe Size
1/4"-20	3/4"	1 1/4	3/4"	3/8"
1/4"-20	3/4"	1 3/4	3/4"	3/8"
1/4"-20	3/4"	2 1/4	1 1/2	3/8"
1/4"-20	1"	1 3/4	3/4"	1/2"
1/4"-20	1-1/8"	2	3/4"	3/4"
1/4"-20	1-3/8"	2 1/4	3/4"	1"
1/4"-20	1 3/4	2 3/4	1	1 1/4
1/4"-20	2	3 1/4	1 1/4	1 1/2
1/4"-20	1 1/2	3 1/2	2	1
5/16"-18	1 3/8	2 3/16	1	1
5/16"-18	1 3/8	3 11/16	1 1/2	1
5/16-18	1 3/4	2 11/16	1	1 1/4
5/16-18	2	2 11/16	1	1 1/2
5/16-18	2	3 11/16	1 1/2	1 1/2
5/16-18	2 1/2	3 3/16	1 1/2	2
3/8"-16	1	2 1/4	1 1/4	1/2"
3/8"-16	1 3/8	3 1/8	1 1/2	1
3/8"-16	1 1/2	2 1/2	1 1/4	1
3/8"-16	2	3 1/8	1 1/4	1 1/2
3/8"-16	2 1/2	3 5/8	1 1/2	2
3/8"-16	3	4 1/8	1 1/2	2 1/2
3/8"-16	3 5/8	4 5/8	1 1/2	3
1/2"-13	3	4 1/2	1 1/2	2 1/2
1/2"-13	3.5	5	1 1/2	3
1/2"-13	4	5 1/2	1 1/2	3 1/2
1/2"-13	4.625	6	1 1/2	4
1/2"-13	5.625	7	2	5
1/2"-13	6.75	8	2	6
1/2"-13	8.75	10 3/8	2	8
5/8"-11	8.75	11 1/2	4	8
