Roof Hook

What is a Roof Hook and Why is It Essential for Your Solar Installation?

A Roof Hook is a fundamental mounting component used to securely attach solar panel rails or mounting frames directly to your roof structure. Acting as the critical link between the roof and the solar array, it ensures the entire system is anchored safely and withstands decades of environmental stress. Unlike generic fasteners, a high-quality roof hook is engineered for specific roofing materials—such as asphalt shingles, metal, tile, or trapezoidal sheet—and is designed to maintain the roof's weatherproof integrity while supporting significant weight and wind loads. Choosing the correct roof hook is not just about installation; it's about guaranteeing the long-term performance, safety, and warranty compliance of your solar investment.

Detailed Product Parameters: Engineering for Durability and Performance

Our roof hooks are manufactured to the highest standards using premium materials and precise engineering. Below are the detailed specifications that define our product's superiority.

Material & Finish Specifications

• Primary Material: High-grade Aluminum Alloy (6063-T5/T6) or Hot-dip Galvanized Steel (S355MC), selected based on application for optimal strength-to-weight ratio and corrosion resistance.
• Surface Treatment:
  • Aluminum: Clear or colored anodizing (min. 15µ layer thickness) for exceptional UV and corrosion resistance.
  • Steel: Hot-dip galvanized (minimum 80µm zinc coating) or powder-coated finish for maximum durability in harsh coastal or industrial environments.
• Fasteners: Stainless Steel (A2 or A4-70 grade) bolts and nuts included, ensuring no galvanic corrosion and long-term clamping force retention.

Technical Dimensions & Load Capacities

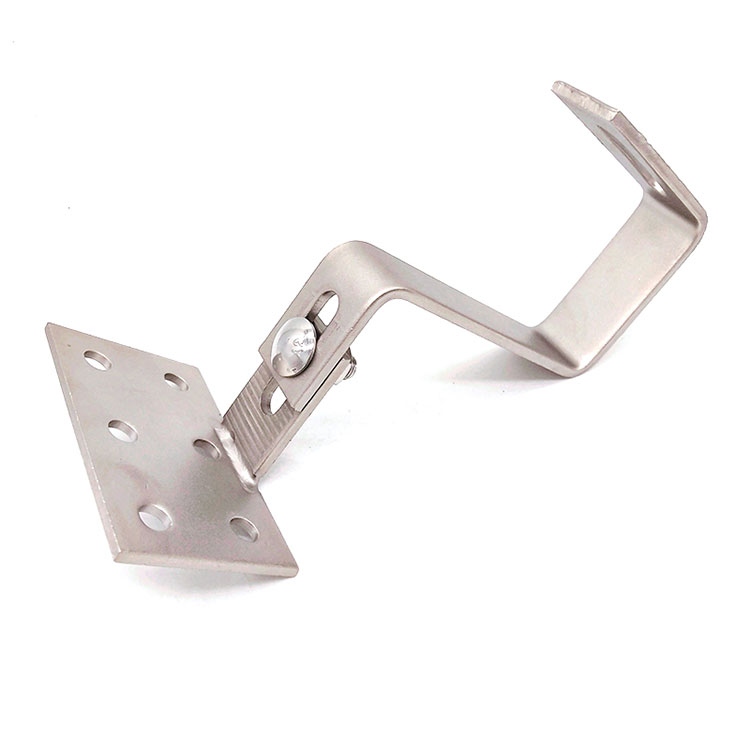

The following table outlines key technical data for our standard asymmetric roof hook model, designed for pitched tiled or shingle roofs.

Roof Type Compatibility & Accessories

• Asphalt Shingle Roofs: Low-profile design with integrated butyl/rubber EPDM sealing pad. Requires flashing for watertight seal.

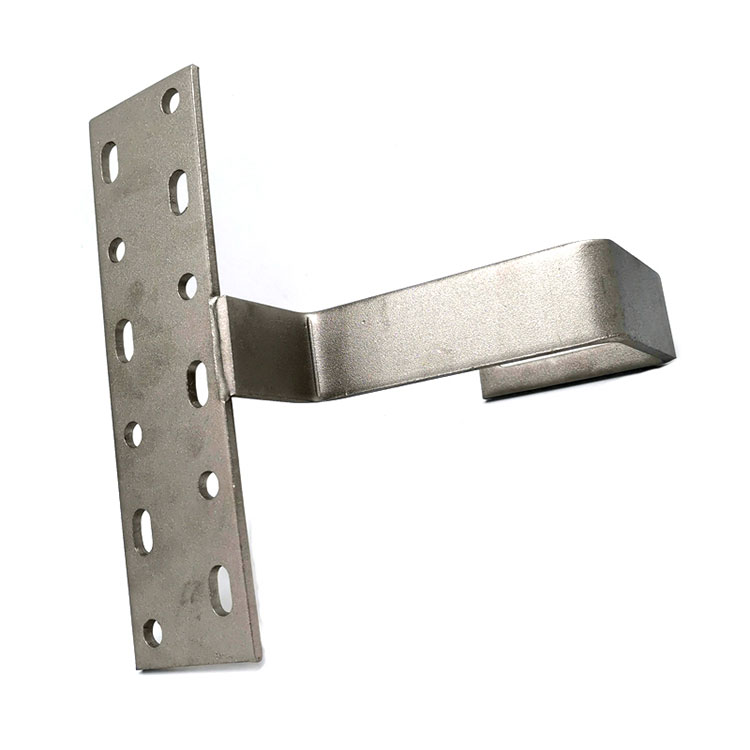

• Concrete & Clay Tile Roofs: Often used with tile hooks or replacement tiles. Designed to clip under existing tiles without drilling into the waterproof layer.
• Metal Sheet Roofs: Available with specialized clamps that attach to the seam or rib of the metal profile, eliminating the need for roof penetration.
• Flat Roofs / Membranes: Used with ballasted trays or specialized flat roof attachments; different hook geometry applies.
• Key Accessories: Sealing washers, lead or aluminum flashings, specialized screws for rafters/trusses, spacer blocks for tile alignment.

Roof Hook FAQs: Expert Answers to Common Questions

Installation & Compatibility

Q: Can I use the same roof hook model for my asphalt shingle roof and my neighbor's tile roof?

A: Generally, no. Roof hooks are specifically engineered for different roofing materials and profiles. Using an asphalt shingle hook on a tile roof would likely compromise the weather seal and mechanical stability. Always select a hook designed for your specific roof type to ensure proper load distribution, waterproofing, and compliance with installation standards.

Q: How do I determine the correct spacing between roof hooks for my solar panels?

A: Hook spacing is a critical engineering calculation based on several factors: panel dimensions and weight, local wind and snow load codes (ASCE 7, Eurocode), roof rafter spacing, and the specific load capacity of the hook itself. A typical starting point is aligning hooks with roof rafters (usually 400mm, 600mm, or 24-inch centers) and placing them at each end of a rail section. For precise spacing, always refer to the system manufacturer's engineering guidelines or consult a structural engineer.

Q: Is it necessary to hit a roof rafter every time, and what if I miss?

A: It is highly recommended and often required by building codes to anchor the roof hook into a solid roof rafter or truss. This ensures the load is transferred to the building's structure. If a rafter is missed, specialized heavy-duty toggle bolts or anchors designed for roof sheathing (like plywood or OSB) may be used in some systems, but this significantly reduces pull-out strength. Always follow the manufacturer's approved mounting methods for secondary attachments, and never rely solely on the roof decking material for primary support.

Performance & Durability

Q: What prevents the roof hook from causing leaks in my roof?

A: High-quality roof hooks are part of a complete waterproofing system. They are used in conjunction with:

• Flashing: A metal (often aluminum or lead) or rubber sheet that fits under the upstream shingle/tile and wraps around the hook's foot, directing water away from the penetration.
• Sealing Washers/Pads: EPDM or butyl rubber gaskets installed under the hook's base plate and around the fastener, creating a compression seal.
• Proper Installation: Correct placement on the roof and sealing with appropriate lap sealant (e.g., polyurethane) is crucial. When installed correctly, this system is often more watertight than the surrounding roof area.

Q: How long can I expect a roof hook to last? Will it corrode?

A: A properly specified and installed roof hook should last the lifetime of the solar panel system (25-30+ years). Corrosion resistance is ensured by material choice (aluminum or galvanized steel) and compatible stainless-steel fasteners to prevent galvanic corrosion. The anodized or galvanized coating protects against UV degradation, salt spray, and industrial pollution. Regular inspections are advised to ensure seals and fasteners remain tight.

Q: Can roof hooks withstand extreme weather like hurricanes or heavy snow?

A: Yes, when the full mounting system is engineered for the specific site conditions. Roof hooks are tested for dynamic pull-out and shear forces simulating extreme wind uplift (as per UL 2703 or IEC 61215). For high wind or snow regions, the engineering will dictate closer hook spacing, potentially stronger hook models (e.g., steel instead of aluminum), and may require additional lateral bracing. Always ensure your system is designed to meet or exceed local building code requirements for environmental loads.

Selection & Sourcing

Q: Are roof hooks universal, or are they brand-specific to the mounting rail?

A: While many hooks are designed to be compatible with industry-standard rail profiles (like those with a 30-50mm wide channel), they are not universally interchangeable. Critical factors include the rail's internal geometry, the required bolt size, and the hook's clamping mechanism. Using an incompatible hook can lead to improper clamping, galvanic corrosion, or system failure. Always verify compatibility with your rail supplier or choose hooks and rails from the same certified mounting system provider.

Q: What information do I need to provide to my supplier to get the right roof hook?

A: To ensure you receive the correct product, provide your supplier with:

• Roofing material type (e.g., concrete tile, standing seam metal).
• Tile profile or shingle type (if applicable).
• Make and model of your intended mounting rail.
• Rafter/truss material and spacing.
• Your geographic location (for basic environmental load consideration).
• Any specific certification requirements (e.g., UL listing, TÜV approval).
