What Are ASME B18.2.1 SAE Grade 5 Hex Head Bolt Carbon Steel Zinc Plated Used for in Industrial Assembly?

Understanding Medium-load Fastener Selection for North American Projects

Many mechanical engineers and procurement teams face challenges when selecting inch-series fasteners for US-standard equipment. They need a bolt that balances strength, cost and corrosion resistance without over-specifying to expensive high-grade fasteners.

When designing assemblies, engineers must consider vibration, cyclic load and ambient rust risk. Not all fastening joints require Grade 8 high-strength bolts. For most medium stress connections, Grade 5 delivers sufficient tensile performance while keeping project budgets controlled. The zinc plated coating adds basic anti-rust protection, making it versatile for indoor equipment and sheltered outdoor installations.

ASME B18.2.1 SAE Grade 5 Hex Head Bolt Carbon Steel Zinc Plated fills this gap perfectly, and it has become a mainstream pick for medium-load industrial assembly across multiple sectors.

Matching Inch Fasteners for North American Project Standards

North American mechanical projects strictly follow inch measurement systems, which means metric bolts cannot directly replace inch fasteners. Thread pitch, outer diameter and load capacity are all defined differently. Using mismatched fasteners will lead to thread stripping, loose connections and potential equipment safety hazards. Choosing bolts manufactured under ASME B18.2.1 ensures full compatibility with existing UNC tapped holes and standard inch nuts on site.

Core Industrial Application Areas

Industrial assembly covers a wide range of equipment, and this bolt fits several key sectors.

- Agricultural machinery: Used on tractor frames, harvesting equipment and farm implement attachments, resisting vibration from continuous field operation.

- Light truck & trailer components: Widely applied for chassis brackets, trailer body assembly and maintenance replacement parts.

- General machinery manufacturing: Machine frames, pump housings and conveyor system connections are common use cases.

- Steel support frames: Ideal for sheltered steel brackets and pipe support assemblies under moderate static load.

It works with standard UNC nuts and washers, which simplifies spare part management for MRO teams. For any of these projects, engineers frequently select ASME B18.2.1 SAE Grade 5 Hex Head Bolt Carbon Steel Zinc Plated.

Considerations for MRO Spare Part Procurement

Maintenance and repair operations are a major consumption scenario for inch fasteners. Factories and equipment rental companies need stable, consistent replacement parts to reduce machine downtime. Many buyers prefer to stock universal medium-strength bolts that can cover most routine repair jobs. This bolt is a preferred spare part because its performance level covers most common non-critical connection points.

Grade Comparison Table

Fastener Grade	Min Tensile Strength	Typical Application
SAE Grade 2	74 ksi	Light load, non-critical assembly
SAE Grade 5	120 ksi	Medium load, machinery & trailer assembly
SAE Grade 8	150 ksi	Heavy load, critical safety joints

Mechanical strength defines the load limit of a fastener, yet surface finish determines how long the bolt can survive under environmental conditions. Strength grade and coating work together, so engineers need to match both parameters according to actual working scenarios. A high-strength bolt with improper surface treatment may still fail prematurely due to rust.

Surface Finish Selection Guide

Finish	Anti-corrosion Level	Best Working Environment
Zinc Plated	Moderate	Indoor & mild sheltered outdoor
Black Oxide	Low	Dry indoor workshop environment
Hot Dip Galvanized	High	Exposed outdoor, humid atmosphere

How Working Environment Impacts Fastener Lifespan

Even bolts of the same grade will show different service life based on surrounding conditions. Dry indoor workshops cause little corrosion, so zinc plated fasteners can maintain stable performance for years. If the equipment is placed outdoors with rain but covered by a roof, zinc plating still offers acceptable protection. Exposed coastal locations with salt spray will accelerate rust, requiring upgraded hot dip galvanized surface treatment.

Practical Engineering Notes

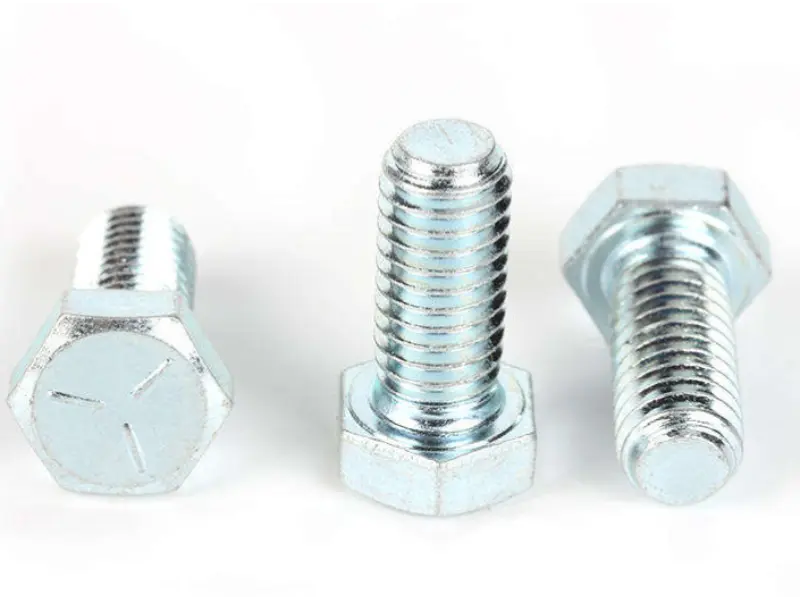

One common mistake in assembly is confusing Grade 5 and Grade 8 bolts. The three radial lines on the bolt head are the official marking for SAE Grade 5. Inspectors and buyers can quickly verify the grade by checking this marking. Keep in mind, hot dip galvanizing coating may cover the head marking, so visual identification will be harder for HDG variants.

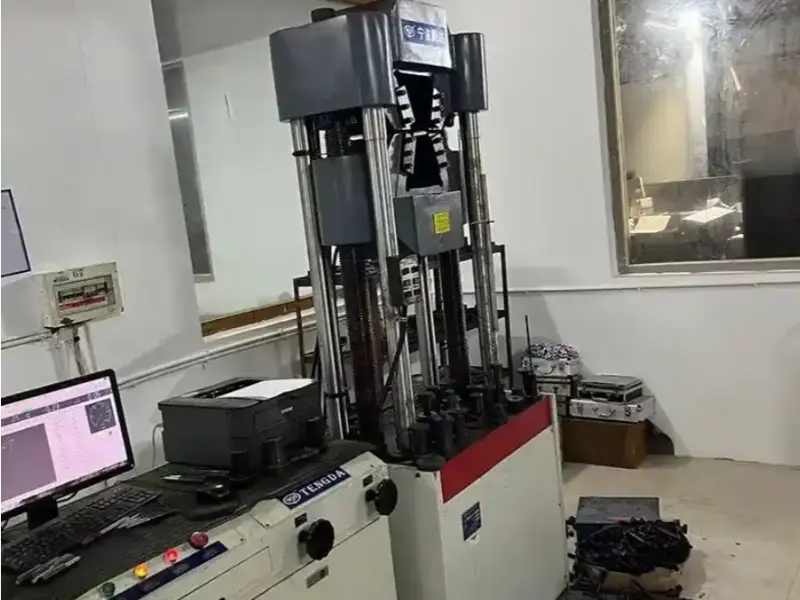

Before mass installation, many project teams prefer to run tensile tests on sample batches. Gangtong Zheli supports third-party testing and can provide MTC documents upon order request, helping buyers verify that each batch meets SAE J429 and ASME B18.2.1 requirements.

Tensile testing is the most reliable method to confirm mechanical performance before mass assembly for ASME B18.2.1 SAE Grade 5 Hex Head Bolt Carbon Steel Zinc Plated.

Procurement & Shipment Insights

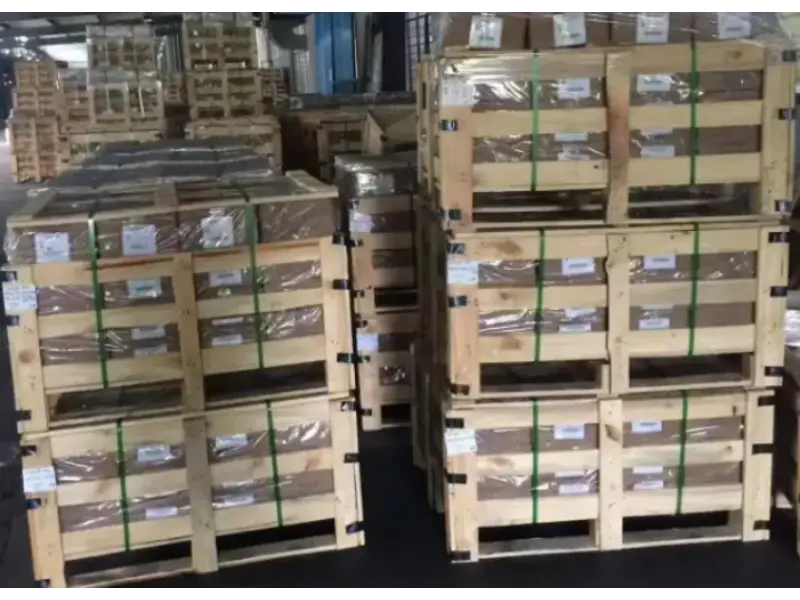

For bulk industrial orders, stable supply and consistent quality are just as important as technical parameters. Small trial orders are acceptable for project verification, which is helpful for new buyers to test fit and performance before committing to large volume purchases. All bulk shipments are packed into export neutral cartons with fumigated pallets, to meet ocean shipping requirements.

Tips for Bulk Order Planning

When planning large fastener orders, lead time and stock availability need to be considered early. Popular sizes are usually kept in stock for fast delivery, while less common custom lengths require longer production cycles. Communicate your project timeline and inspection requirements with your supplier in advance to avoid delays during equipment installation.

When evaluating long-term suppliers, you should check their testing capability and batch consistency. Gangtong Zheli maintains full in-house testing facilities to validate every batch of fasteners. Customers can rely on stable performance when they source ASME B18.2.1 SAE Grade 5 Hex Head Bolt Carbon Steel Zinc Plated for ongoing production.

FAQ

Q1: Can this bolt be used in fully exposed coastal environments?

A1: Standard zinc plated version is not recommended for coastal salt air. Hot dip galvanized surface treatment is suggested for such harsh conditions.

Q2: What is the difference between Grade 5 and Grade 8 bolts?

A2: Grade 8 has higher tensile strength and is used for critical high-load joints, while Grade 5 is cost-effective for medium-load industrial assembly.

Q3: Can I order mixed sizes in one shipment?

A3: Mixed sizes are negotiable, subject to total order quantity confirmation.

Q4: Is custom thread length available?

A4: Custom lengths can be arranged if the order meets the minimum MOQ.
