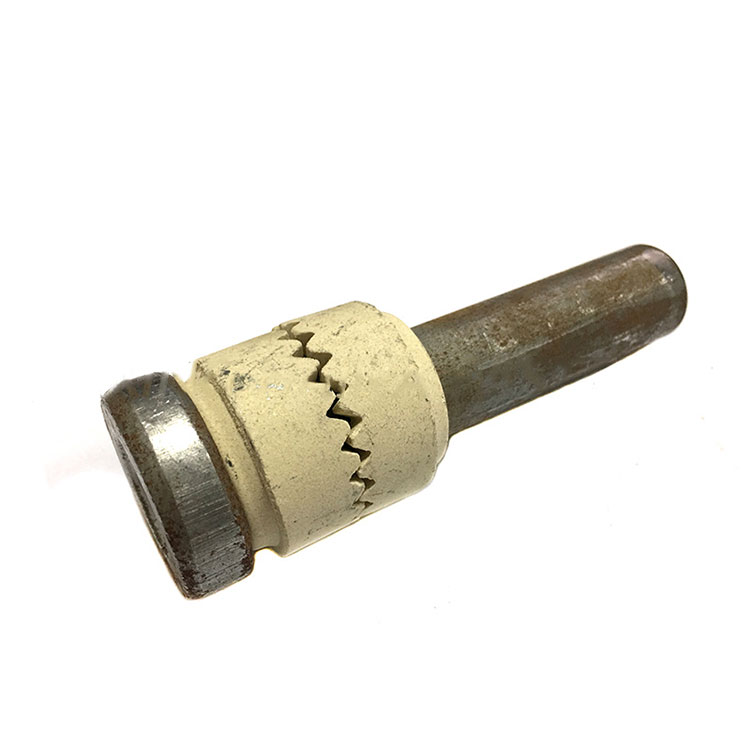

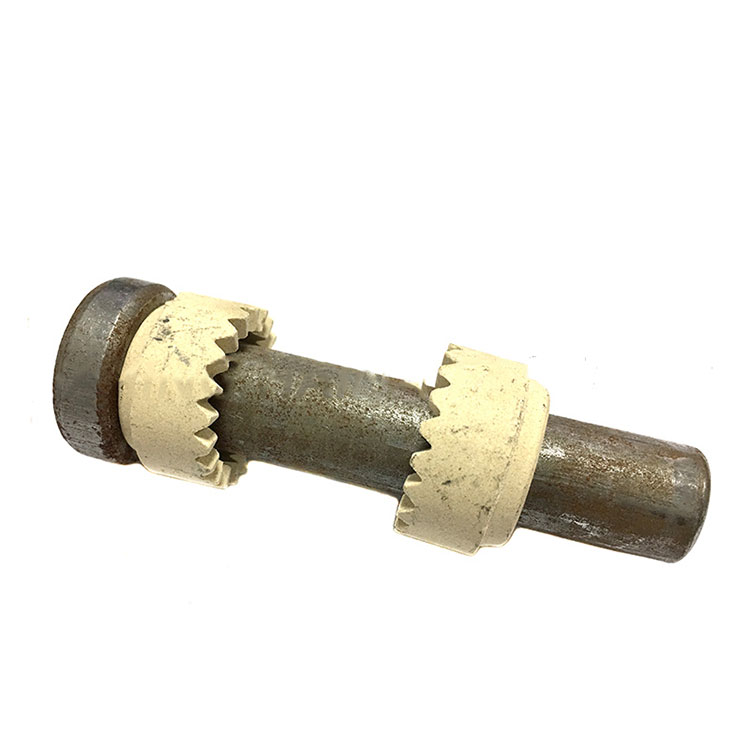

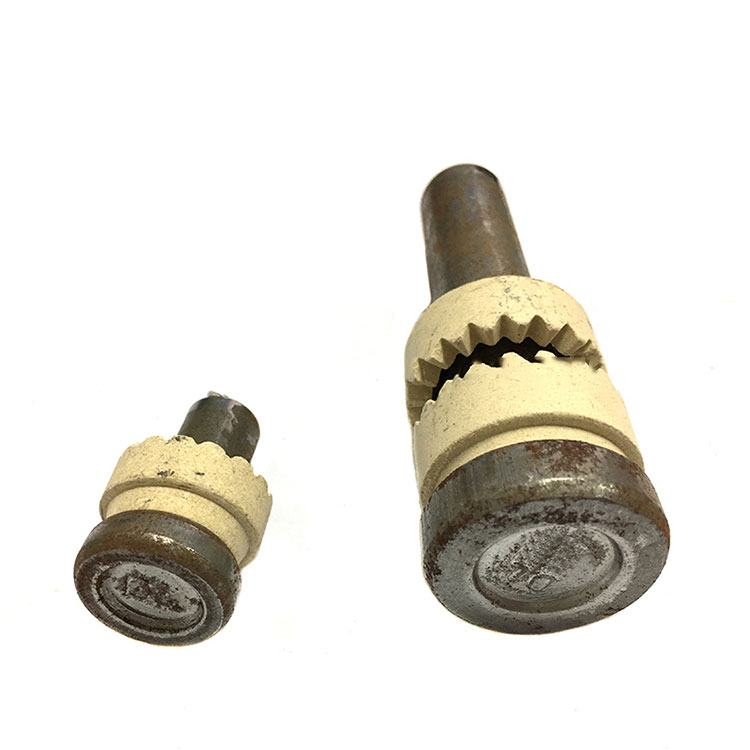

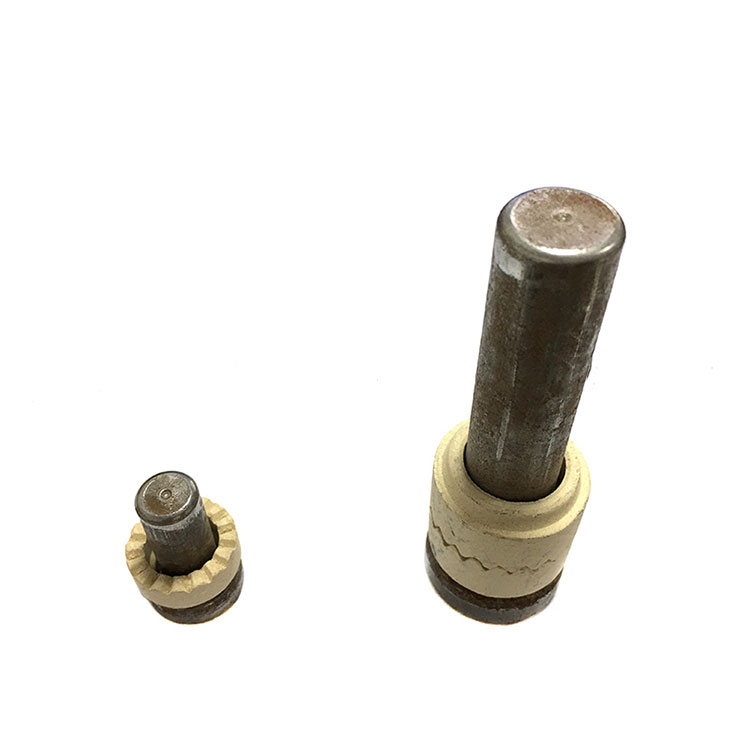

High Tensile Shear Connector Stud With Standard ISO 13918 Type: SD

The shear stud are fasteners with high strength stiffness connection. The shear studs are abbreviated as the cylindrical studs ( Cheese head studs for arc stud welding). The specifications of theshear studs are nominal diameter Ф10 ~ Ф25mm, The total length of the welding before the 40 ~ 300 mm. The nail has the top of the head with the glyphs to make the manufacturer's identification mark, the use of welding nail is very wide.

Shear Connector Studs are designed to tie the concrete slab to the steel beams and to resist shear loadings between the concrete slab and steel beam in composite construction. This enables us to load up to 1000 kg/m2 instead of the usual load which is much less. The procedure saves time and therefore money as well due to its simplicity.

Shear Stud Connectors are the most important element in Composite Beam design securing the concrete to steel structural components. Shear Stus Connectors resist shear forces and increase shear loading capacity in steel buildings,bridges.

CYLINDER HEAD WELDING
BOLT DIMENSION
d	NOMINAL	10	13	16	19	22	25
	MIN	9.64	12.57	15.57	18.48	21.48	24.48
	MAX	10	13	16	19	22	25
dk	MAX	18.35	22.42	29.42	32.5	35.5	40.5
	MIN	17.65	21.58	28.58	31.5	34.5	39.5
d1		13	17	21	23	29	31
h		2.5	3	4.5	6	6	7
k	MAX	7.45	8.45	8.45	10.45	10.45	12.55
	MIN	6.55	7.55	7.55	9.55	9.55	11.45
r	MIN	2	2	2	2	3	3
WA		4	5	5	6	6	6
