DIN557 Square Nut Metric Carbon Steel Zinc Plated

Industrial assembly often encounters annoying issues such as nut spinning and inconvenient clamping in confined mounting positions. DIN557 Square Nut Metric Carbon Steel Zinc Plated is a classic German standard square fastener engineered to solve these assembly pain points. Unlike conventional hexagonal nuts, its square outer profile restricts rotational movement during tightening, removing the need to hold the nut with a second tool. Manufactured from selected low carbon steel substrate with blue-white zinc electroplating, this nut delivers dependable basic rust resistance for indoor industrial environments. We also maintain stock of A2 stainless steel variants for humid, coastal or chemically mild corrosive working conditions. Every production batch undergoes strict multi-stage sampling inspection covering visual appearance, thread integrity and dimensional tolerance. Our products are widely exported to European and North American industrial markets, trusted by equipment manufacturers, metal fabricators and engineering contractors for consistent, repeatable fastening performance.

Product Dimension Specification

Square nuts follow unique dimensional rules different from hex nuts, with critical parameters including square width, nut height and internal thread dimensions. DIN557 Square Nut Metric Carbon Steel Zinc Plated adheres strictly to DIN 557 dimensional tolerances, and we can develop non-standard customized sizes according to customer drawings for special engineering projects.

Size	Thread	Across Flat Width S	Nut Height m	Minor Diameter
M4	M4 × 0.7	7.0 mm	3.2 mm	3.242 mm
M5	M5 × 0.8	8.0 mm	4.0mm	4.134 mm
M6	M6 × 1.0	10.0mm	5.0mm	4.917 mm
M8	M8 × 1.25	13.0mm	6.5mm	6.647 mm
M10	M10 × 1.5	16.0mm	8.0mm	8.376 mm

Notes: All thread dimensions comply with ISO metric thread standards. Custom thread pitch and special dimensional limits are available upon technical evaluation. Complete dimensional inspection reports can be supplied together with shipments on request.

Surface Finish Options

The service life of fasteners heavily depends on surface treatment, which is selected according to humidity, salinity and chemical exposure of the operating environment. DIN557 Square Nut Metric Carbon Steel Zinc Plated adopts blue-white electro zinc plating as the default surface finish, and we offer a full portfolio of alternative coating solutions to satisfy diverse anti-corrosion requirements from different industries.

Surface Finish	Abbreviation	Salt Spray Performance	Typical Application
Zinc Plated (Blue White)	ZP	48hrs	Indoor machinery, dry metal frames
Yellow Zinc Plated	YZP	72hrs	Indoor equipment with occasional moisture

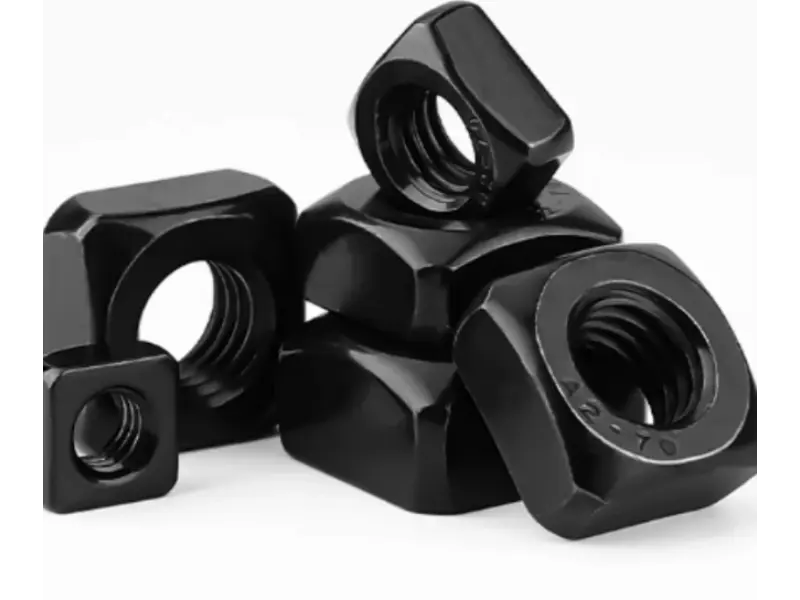

Black Oxide	B/O	Minimal	Dry indoor fixtures, aesthetic purposes
Hot Dip Galvanized	HDG	1000hrs	Outdoor steel structure, heavy corrosion
Dacromet	DAC	1000hrs+	Coastal, high humidity harsh environment

Notes: Different coatings will create minor changes to thread fit. Salt spray test certificates and coating thickness inspection records can be provided for customer verification. Special coating requirements can be discussed with our technical team.

Mechanical Properties

Stable mechanical performance is the core guarantee for safe long-term fastening connections. DIN557 Square Nut Metric Carbon Steel Zinc Plated is produced from high-quality carbon steel raw material, processed by hot forging or cold forming followed by precision internal thread tapping. The forming process ensures uniform material structure and stable load capacity. The black oxide version uses the identical carbon steel base material, only the surface conversion coating is different. A2 stainless steel square nuts have excellent corrosion resistance and stable medium load capacity, suitable for scenarios where rust prevention is prioritized. Every batch will be sampled for mechanical load test, thread fit test and visual defect screening before packing to eliminate unqualified products.

Core Product Features

Selecting the right fastener can greatly lower assembly cost and reduce maintenance downtime. DIN557 Square Nut Metric Carbon Steel Zinc Plated comes with a set of practical advantages for industrial assembly.

- Anti-rotation square profile: Square outer geometry locks the nut position and prevents free rotation during tightening, greatly simplifying assembly work in narrow spaces

- Precision metric internal thread: Clean, burr-free threads ensure smooth mating with matching metric bolts and avoid thread galling

- Comprehensive size lineup: M4 to M10 regular sizes are kept in stock, supporting small trial orders and large volume bulk projects

- Versatile surface treatment options: Multiple coating choices to match dry indoor, damp indoor and outdoor corrosive environments

- Rigorous multi-step quality control: Raw material check, in-process inspection and finished goods sampling test for dimension, appearance and thread

- Full DIN557 standard compliance: Fully manufactured to German DIN557 specification, accepted widely by European industrial buyers

Application Scenarios

Fastener selection must match the working load and assembly method of the end product. DIN557 Square Nut Metric Carbon Steel Zinc Plated is a versatile fastening component deployed across a broad range of industrial sectors. Typical application areas include mechanical equipment frames, assembly jigs and holding fixtures, material handling conveyor systems, electrical metal cabinet assembly, agricultural machinery components, construction metal support brackets, automotive auxiliary assemblies and general metal structure fastening. Its anti-spin design delivers outstanding advantages in automated assembly lines or confined mounting positions where technicians cannot use a second wrench to hold nuts. Mechanical design engineers frequently specify this square nut to optimize assembly workflow and reduce rejection rates during mass production.

Why Choose Gangtong Zheli

Choosing a reliable fastener supplier is critical to maintain stable product quality of your finished equipment. DIN557 Square Nut Metric Carbon Steel Zinc Plated is one of our mature standard fastener lines, backed by our complete manufacturing and quality assurance system. We specialize in manufacturing and exporting standard and custom fasteners for global industrial customers. Our factory implements full-process quality management covering raw material incoming inspection, production process monitoring and finished product final inspection. We maintain stable raw material supply chains and a professional technical team capable of drawing review, product performance testing and custom coating development. Our sales and engineering team have accumulated rich experience serving European markets, familiar with DIN fastener standards, material test documentation and international export compliance requirements. We focus on establishing long-term strategic partnerships instead of one-off sales. We provide professional technical consultation and stable quality assurance for every customer’s fastening project. Whether you need ready standard off-the-shelf parts or fully customized fastener solutions, our team can deliver tailored technical support to achieve your project goals.

Packaging & Delivery

Proper packaging protects fasteners against scratches and contamination during long-distance international transportation. DIN557 Square Nut Metric Carbon Steel Zinc Plated adopts standard export packaging: inner PE plastic bags for dust and moisture protection, then packed into heavy-duty export corrugated cartons. Custom packaging, private logo marking and customized label printing services can be arranged according to buyer’s specifications. Multiple shipping methods are available including sea freight, air freight and international express. We maintain sufficient stock levels for regular sizes. Inspection documents such as dimension reports and material certificates can be prepared upon request for bulk shipments.

FAQ

Q1: What is the core working principle of anti-rotation square nuts?

A: The square outer profile cannot spin freely when seated against a flat surface. When tightening the mating bolt, the square nut stays fixed without rotating, so workers only need to turn the bolt without holding the nut. This feature saves assembly time significantly.

Q2: Can custom logo or marking be stamped onto DIN557 square nuts?

A: Custom logo, grade marking or part number stamping can be processed on the nut surface. Our technical team will assess feasibility based on nut size and production process limitations.

Q3: What quality tests will be carried out for each batch of square nuts?

A: Each batch includes raw material chemical composition analysis, dimensional measurement, thread gauge verification, visual appearance inspection, and sampling mechanical load testing. Additional salt spray corrosion testing can be arranged for coated products.

Q4: Can you provide third-party inspection documents for export?

A: Yes, we can cooperate with recognized third-party inspection institutions. Third-party inspection reports can be issued as requested before shipment to meet your buyer’s audit requirements.
