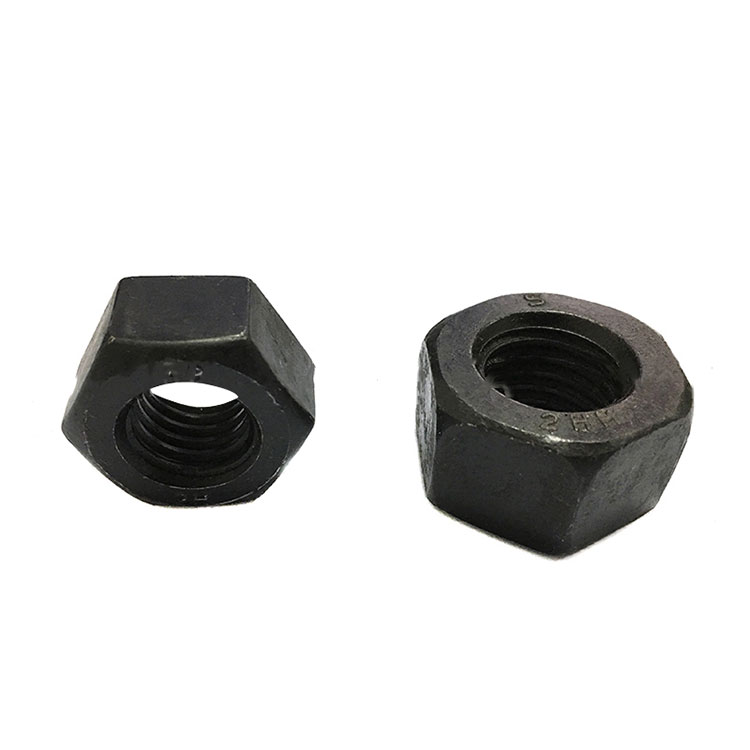

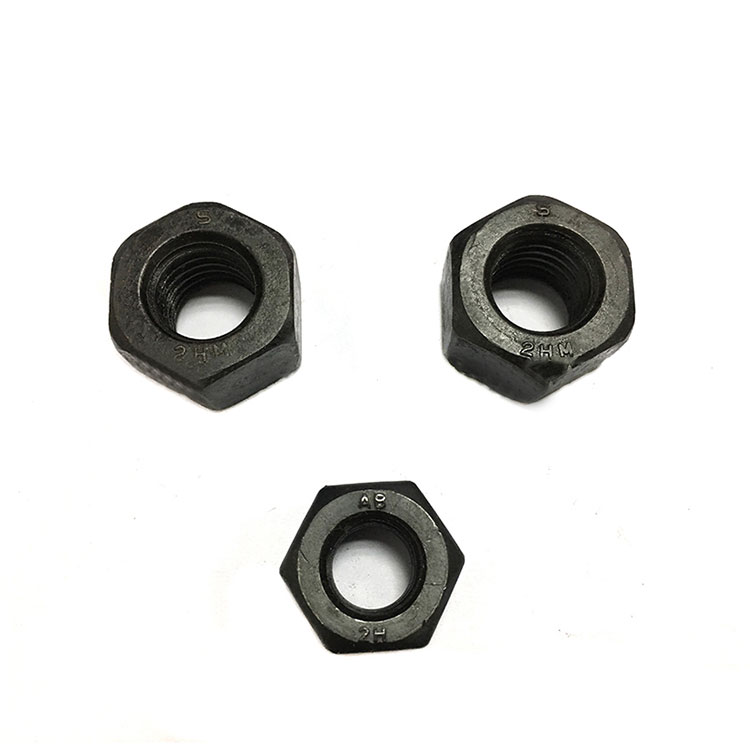

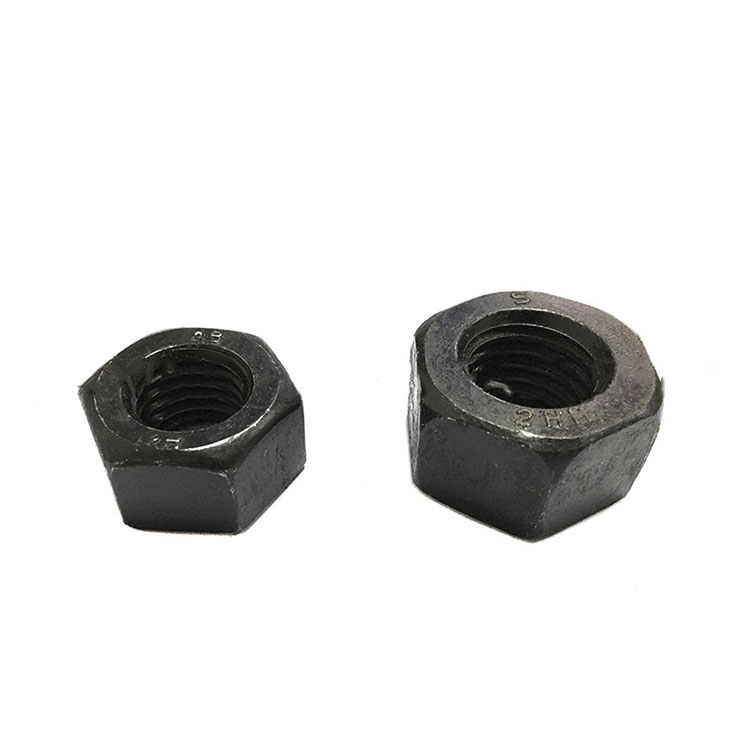

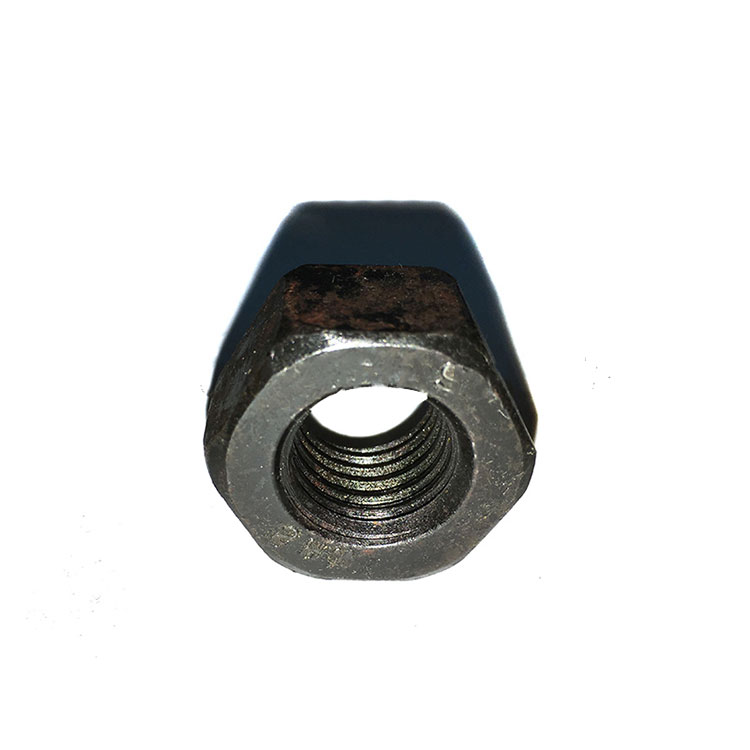

Heavy Hex Nuts are a favorite in the fastener industry. These six-sided, internally-threaded Heavy Hex Nuts are one of the strongest, most durable fasteners in the industry, designed to sustain the strains of the most extreme industrial conditions. Permanent Technologies provides Heavy Hex Nuts in various grades, finishes, threads, and sizes, as well as custom orders to fit your unique industrial need. ASTM A194 is a standard specification for carbon and alloy steel nuts used in high-pressure and high-temperature service. The "2H" designation specifies a particular grade of heavy hex nuts with higher strength and temperature resistance. These hex nuts are used in critical applications, often in conjunction with ASTM A193 alloy steel bolts, where high strength and durability are essential, such as in pressure vessels, flanges, and piping systems in industries like petrochemical, oil and gas, and power generation.
| ASTM A194 2H | Heavy hex nut |
| Relative products | DIN931, DIN933, DIN960, DIN961, DIN934; ISO4014, ISO4017, ISO8765, ISO8676, ISO8673; ASTM A325, ASTMA194 2H, IFI A10 etc. |
| Standard | DIN, ISO, ANSI, ASME, BS, AS, JIS and non-standards |
| Application | Building, instrument, automobile, furniture and so on. |
| Material | Low carbon steel(35k) |
| Size | Diameter:1/4" - 2-1/2" |
| Finish | Zinc plates or black oxidized |
| Grade | Grade: 5 , 8 |
| Packing | 25kg per carton, 36 cartons packed in a pallet or according to your demands |
| Supply Ability | 800 tons per month |
| Delivery | 7-30 days |
| Diameter | Width Across Flats Basic | Width Across Flats Max | Width Across Flats Min | Width Across Corners Max | Width Across Corners Min | Thickness Basic | Thickness Max | Thickness Min |
| 1/4 (0.2500) | 1/2 | 0.500 | 0.488 | 0.577 | 0.556 | 15/64 | 0.250 | 0.218 |
| 5/16 (0.3125) | 9/16 | 0.562 | 0.546 | 0.650 | 0.622 | 19/64 | 0.314 | 0.280 |
| 3/8 (0.3750) | 11/16 | 0.688 | 0.669 | 0.794 | 0.763 | 23/64 | 0.377 | 0.341 |
| 7/16 (0.4375) | 3/4 | 0.750 | 0.728 | 0.866 | 0.830 | 27/64 | 0.441 | 0.403 |
| 1/2 (0.5000) | 7/8 | 0.875 | 0.850 | 1.010 | 0.969 | 31/64 | 0.504 | 0.464 |
| 9/16 (0.5625) | 15/16 | 0.938 | 0.909 | 1.083 | 1.037 | 35/64 | 0.568 | 0.526 |
| 5/8 (0.6250) | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 39/64 | 0.631 | 0.587 |
| 3/4 (0.7500) | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.382 | 47/64 | 0.758 | 0.710 |
| 7/8 (0.8750) | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 55/64 | 0.885 | 0.833 |
| 1 (1.000) | 1-5/8 | 1.625 | 1.575 | 1.876 | 1.796 | 63/64 | 1.012 | 0.956 |
| 1-1/8 (1.1250) | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 1-7/64 | 1.139 | 1.079 |
| 1-1/4 (1.250) | 2 | 2.000 | 1.938 | 2.309 | 2.209 | 1-7/32 | 1.251 | 1.187 |
| 1-3/8 ( 1.3750) | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 1-11/32 | 1.378 | 1.31 |
| 1-1/2 (1.5000) | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1-15/32 | 1.505 | 1.433 |
| 1-5/8 (1.6250) | 2-9/16 | 2.562 | 2.481 | 2.959 | 2.828 | 1-19/32 | 1.632 | 1.556 |
| 1-3/4 (1.7500) | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-23/32 | 1.759 | 1.679 |
| 1-7/8 (1.8750 | 2-15/16 | 2.938 | 2.844 | 3.392 | 3.242 | 1-27/32 | 1.886 | 1.802 |
| 2 (2.0000) | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-31/32 | 2.013 | 1.925 |
| 2-1/4 (2.2500) | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 2-13/64 | 2.251 | 2.155 |
| 2-1/2 (2.5000) | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 2-29/64 | 2.505 | 2.401 |
| 2-3/4 (2.7500) | 4-1/4 | 4.250 | 4.112 | 4.907 | 4.688 | 2-45/64 | 2.759 | 2.647 |
| 3 (3.0000) | 4-5/8 | 4.625 | 4.475 | 5.340 | 5.102 | 2-61/64 | 3.013 | 2.893 |
| 3-1/4 (3.2500) | 5 | 5.000 | 4.838 | 5.774 | 5.515 | 3-3/16 | 3.252 | 3.124 |
| 3-1/2 (3.5000) | 5-3/8 | 5.375 | 5.200 | 6.207 | 5.928 | 3-7/16 | 3.506 | 3.37 |
| 3-3/4 (3.7500) | 5-3/4 | 5.750 | 5.562 | 6.640 | 6.341 | 3-11/16 | 3.76 | 3.616 |
| 4 (4.0000) | 6-1/8 | 6.125 | 5.925 | 7.073 | 6.755 | 3-15/16 | 4.014 | 3.862 |
