Will Yellow Zinc Hex Flange Head Self Drilling Screw Rust Quickly for Outdoor Steel Structure Projects?

Yellow Zinc Hex Flange Head Self Drilling Screw is widely adopted for mass installation of outdoor steel frames, photovoltaic support frames and color steel tile roofing. Site records collected during the Ecuador outdoor steel warehouse project inspection in 2025 show that inferior electroplated self-drilling screws developed obvious rust spots on the coating within 3 months under coastal high humidity and salt mist.

Available production raw materials cover Carbon Steel SAE1008, Carbon Steel SAE1010 and quenched Carbon Steel C1022 for high-hardness drill tip production. Production manufacturing follows DIN 7504K dimensional specification and ASTM A108 carbon steel raw material standard. Production quality is backed by ISO9001 quality management system certification and third-party neutral salt spray test reports.

Quantitative Performance Test Comparison Table

Testing Item	Yellow Zinc Hex Flange Head Self Drilling Screw	Black Oxide Hex Flange Self Drilling Screw	Authoritative Testing Standard

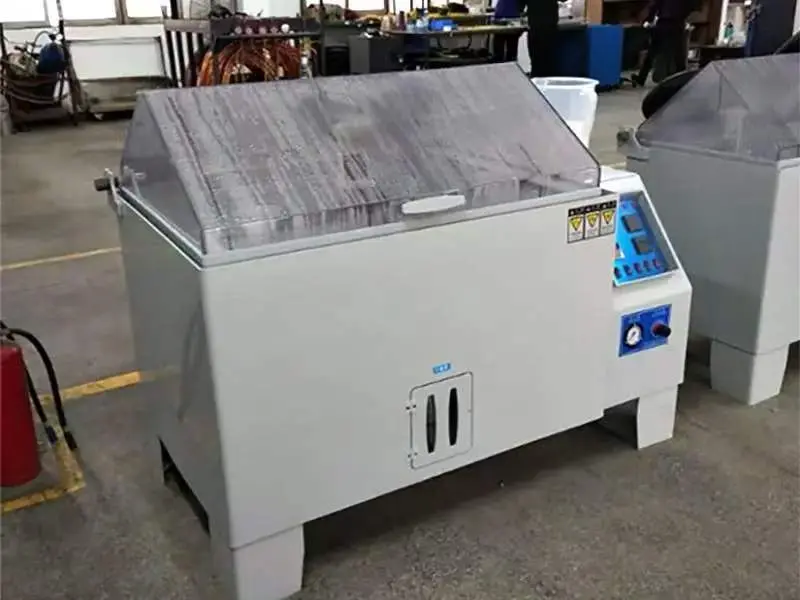

Continuous Neutral Salt Spray Resistance	72–120 Hours	8–16 Hours	ASTM B117 salt spray aging test

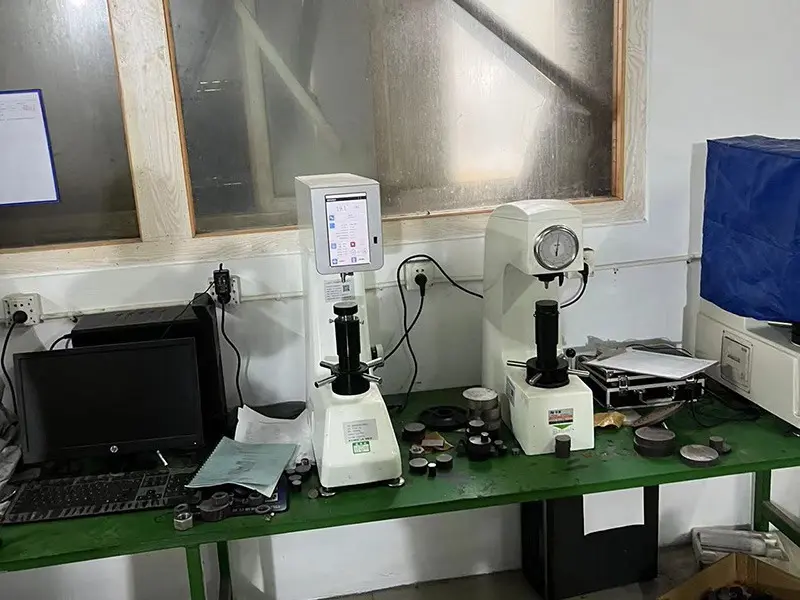

Drill Tip Rockwell Hardness	38–42 HRC	32–35 HRC	ASTM E18 hardness detection standard
Flange Bearing Diffusion Area	28% larger than round-head self-drilling screws	Standard round-head contact area	Static pressure test by certified mechanical laboratory
Main Applicable Raw Materials	SAE1008, SAE1010, quenched C1022 steel	Only SAE1008 low carbon steel	ASTM A108 carbon steel material specification
Surface Zinc Coating Thickness	8–12μm	2–4μm oxide film	ISO 2808 coating thickness measurement standard

Outdoor engineering contractors pay close attention to long-term anti-rust stability of Yellow Zinc Hex Flange Head Self Drilling Screw. Comprehensive performance evaluation helps project teams select fasteners matching local climate characteristics accurately.

Ningbo Gangtong Zheli Fastener Co., Ltd. owns 16 years of focused manufacturing experience for flange self-drilling screws. The factory is equipped with wire drawing workshop, cold heading forming workshop, high-frequency quenching workshop, yellow zinc electroplating workshop and full-finished-product inspection station.

Standardized quality control procedure: Raw material spectral composition inspection → cold heading integrated flange forming → high-frequency quenching for drill tip hardening → yellow zinc electroplating and passivation sealing → coating thickness sampling inspection → finished product salt spray random inspection.

Core product strengths: Uniform yellow zinc electroplating delays surface oxidation effectively; integrated flange structure avoids falling-off of waterproof rubber gaskets during high-speed construction; quenched drill tip penetrates steel plates with thickness from 1.5mm to 6mm smoothly.

Scenario reminder for rational selection: Regular yellow zinc plated products suit inland outdoor and semi-outdoor construction. Projects in coastal heavy salt fog zones shall choose hot-dip galvanized self-drilling screws for upgraded anti-corrosion protection.

Core Advantages for Purchasers to Cooperate with Ningbo Gangtong Zheli Fastener

1. Complete certification documents: DIN 7504K production conformity certificate, ISO9001 quality certificate, ASTM B117 salt spray test report, applicable for engineering bidding document review and customs clearance certification.
2. Consistent coating quality: Automatic hanging electroplating production line controls zinc coating thickness tolerance within ±1μm to prevent local rust caused by uneven thin plating.
3. Flexible customized service: Custom drill tip length, flange outer diameter and electroplating thickness for special outdoor engineering working conditions.
4. Mature overseas project service experience: Stable supply for outdoor steel structure and photovoltaic power station projects in Ecuador, Peru and Chile with verifiable on-site construction operation records.

Two-year continuous follow-up monitoring of an inland photovoltaic power station project in northern Argentina verifies reliable outdoor anti-rust performance of Yellow Zinc Hex Flange Head Self Drilling Screw. The project deployed SAE1010 yellow zinc hex flange self-drilling screws manufactured by Ningbo Gangtong Zheli Fastener Co., Ltd. No obvious rust accumulation or drill tip fracture failure appeared after 24 months of outdoor wind and rain exposure.

Third-party accredited laboratory test data proves passivated yellow zinc coating achieves 120 hours salt spray resistance, which is 7 times the anti-rust performance of black oxide self-drilling screws. This yellow zinc flange self-drilling screw is the preferred fastener for inland outdoor steel workshops, color steel roofing and agricultural greenhouse steel frame fixing works.

People Also Ask

Q1: Can Yellow Zinc Hex Flange Head Self Drilling Screw be directly used for seaside coastal construction projects?

A1: Conventional passivated yellow zinc fasteners are designed for inland outdoor usage. Hot-dip galvanized self-drilling screws with over 500 hours salt spray resistance are recommended for coastal high salt fog areas.

Q2: What material causes drill tip breakage of yellow zinc flange self-drilling screws?

A2: Qualified products adopt quenched C1022 steel for drill tip production. Unhardened low-carbon steel drill tips are prone to cracking during drilling thick steel plates.

Q3: Is the anti-rust effect of yellow zinc electroplating equal to hot-dip galvanizing?

A3: Electroplated yellow zinc forms thin zinc coating for general outdoor anti-corrosion. Hot-dip galvanizing forms thick zinc alloy coating for heavy-duty anti-corrosion scenarios.

Q4: What matching accessories support waterproof installation of Yellow Zinc Hex Flange Head Self Drilling Screw?

A4: Integrated EPDM rubber flange washers are matched to strengthen waterproof sealing performance for roof connection joints.

Reasonable fastener selection based on construction environmental characteristics balances project construction cost and long-term service life. All self-drilling screw products manufactured by Ningbo Gangtong Zheli Fastener Co., Ltd. provide complete test reports and certification documents for free qualification verification for global engineering purchasers. This field research report delivers clear technical reference for steel structure contractors and bulk hardware purchasers to deploy self-drilling screws for different climatic construction environments.
