Why Do Timber Construction Contractors Choose ASME B18.5 Round Head Square Neck Carriage Bolt Carbon Steel?

Timber construction projects demand fasteners that balance simple on-site assembly, reliable structural performance and clean finished appearance. For many North American timber and fence contractors, ASME B18.5 Round Head Square Neck Carriage Bolt Carbon Steel becomes their preferred selection for wood connections, thanks to its unique geometry and stable mechanical properties. Timber joints often face repeated vibration and minor shifting after installation, so selecting a fastener that stays locked in place can reduce long-term maintenance work for builders.

Anti-Rotation Design Saves Time On-Site

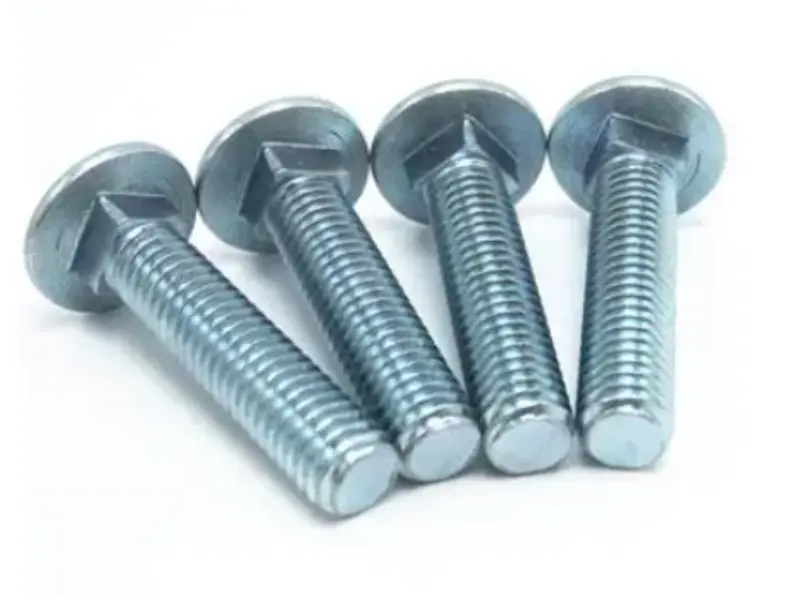

The most valued feature is its built-in square neck directly below the domed round head. When inserted into pre-drilled timber holes, the square shoulder bites into wood fibers and locks the bolt firmly in position. Contractors only need a single wrench to tighten the mating UNC nut from the opposite side. There is no requirement for an extra worker or second tool to hold the bolt head, greatly speeding up installation especially for overhead or hard-to-reach timber joints. This one-sided assembly advantage is one of the biggest reasons field crews favor this bolt for large fencing and timber frame jobs.

Smooth Round Head Protects Timber and Users

Unlike hex bolts with sharp angular edges, the rounded dome head sits nearly flush against timber surfaces after installation. It will not snag workers, clothing or surrounding materials. ASME B18.5 Round Head Square Neck Carriage Bolt Carbon Steel is engineered specifically with this smooth domed profile to reduce hazards on exposed timber assemblies. This design also spreads clamping force over a wider contact area, avoiding localized crushing or denting on timber boards, a common issue when small bolt heads concentrate pressure on soft wood substrates. Many architects specify this style for exposed timber work because the smooth head maintains a neat finished look long after installation. The continuous rounded contour prevents accidental scratches during handling and routine site maintenance of wooden structures.

Standardized Dimensions Guarantee Interchangeability

Parameter	Details
Matching Nut	UNC Hex Nut / ASME B18.2.2 Heavy Hex Nut
Hole Requirement	Pre-drilled square neck seating hole
Assembly Method	Insert bolt first, tighten nut from reverse side
Load Type	Light static structural load
Thread Fit	Class 2A UNC thread tolerance

All dimensional parameters strictly comply with ASME B18.5 specifications. Head diameter, square neck size and UNC thread profile follow unified industry tolerances. Contractors can replace old fasteners easily without modifying pre-drilled timber holes, which brings huge convenience for project maintenance and renovation work. When sourcing replacement fasteners for legacy timber builds, ASME B18.5 Round Head Square Neck Carriage Bolt Carbon Steel eliminates the risk of mismatched hole sizes or incompatible threads.

Selection Checklist for Timber Projects

Different coating options allow contractors to match fastener performance to project environments and budget. When selecting fasteners for timber builds, environmental humidity, wood type, expected service life and aesthetic requirements all influence your final choice. Even with the same bolt body, surface treatment directly impacts rust resistance and visual appearance. Contractors need to evaluate whether the working space has continuous moisture exposure, and pick the most suitable finish to avoid premature corrosion and connection failure. This step helps avoid costly rework and preserves the stability of timber joints for years.

Check Point	Selection Guidance
Timber Density	Softwood suits standard sizes; hardwood may need pre-drilling enlargement
Ambient Humidity	Zinc plating preferred for humid indoor timber applications
Surface Exposure	Choose round head for exposed surfaces to avoid snags
Project Lifespan	Zinc plated for longer service life; black oxide for short-term dry projects

Zinc plated versions provide basic rust protection for indoor timber projects, while black oxide treatment offers an economical choice for dry environments. Buyers can select suitable surface treatment according to humidity levels of timber construction sites. It is important to note that coatings will extend service life when timber is stored in damp indoor spaces, reducing early corrosion risk for carbon steel fasteners.

Wide Range of Timber Application Scenarios

Timber projects cover many different build types, from residential fencing to commercial timber frames and farm equipment frames. This carriage bolt works perfectly for timber frame joints, wooden fence assembly, trailer timber frames, agricultural wooden structures and playground timber frameworks. For projects that require smooth exposed surfaces and dependable wood-to-wood or wood-to-metal connections, this carriage bolt delivers consistent clamping performance. Many prefabricated timber component factories keep inventory of ASME B18.5 Round Head Square Neck Carriage Bolt Carbon Steel to support fast production of pre-cut timber assemblies.

Rigid Raw Material & Production Control

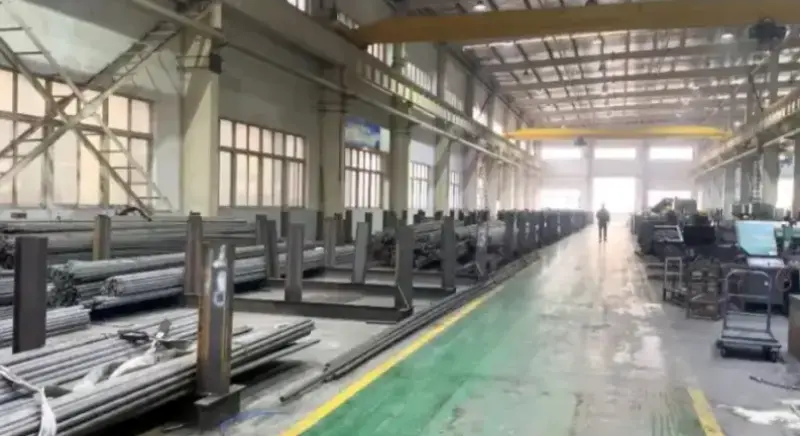

High-quality carbon steel bars are selected as raw materials for manufacturing. Before production starts, each steel bar undergoes incoming material inspection to verify chemical composition and mechanical properties, rejecting any raw stock that fails to meet standards. The blanks go through hot forging to form the round head and square neck, followed by precision thread rolling. Hot forging refines the internal grain of the steel, improving shear strength and overall durability of the finished bolt. After thread rolling, surface cleaning removes oil and debris before surface treatment is applied. Every batch will carry out random sampling inspection on dimension, thread fit and coating integrity. Complete batch records are reserved for quality tracking, so contractors can get stable quality for bulk timber construction orders.

Why Choose Gangtong Zheli

We specialize in ASME standard fasteners serving global timber contractors and fabricators. We support both small trial orders and large bulk shipments. Our technical team can provide professional advice on size matching and surface finish selection for your timber projects, and customized marking and packing solutions are available upon request. We understand timber construction requirements and aim to supply reliable fasteners that match ASME standards for every project.

FAQ

Q: What makes this carriage bolt different from regular hex bolts for timber work?

A: Its square neck locks into timber to stop rotation during tightening, and smooth round head leaves a safe, flush surface on wood.

Q: What nuts match ASME B18.5 carriage bolt?

A: Standard UNC hex nuts or ASME B18.2.2 heavy hex nuts are compatible.

Q: Can samples be supplied for timber project testing?

A: Samples are available, buyers only need to cover the freight cost.

Q: Is this carriage bolt suitable for outdoor timber applications?

A: Zinc plated version offers mild rust resistance, but extra protective coating is recommended for long-term outdoor exposure.
