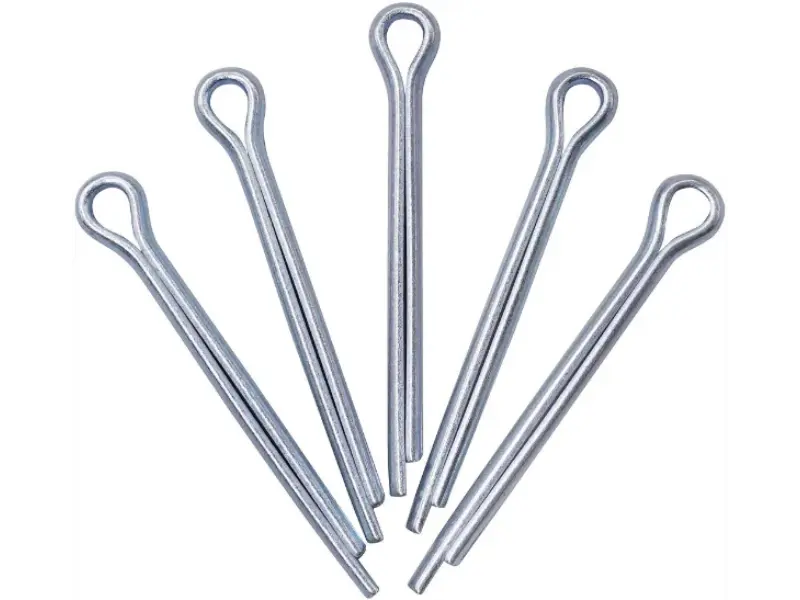

What Are DIN94 Split Pin Metric Carbon Steel Zinc Plated Used for in Mechanical Locking?

Mechanical vibration and dynamic impact are common hazards for bolted connections in industrial equipment. Even tightly fastened nuts and pins may gradually rotate loose during long-time operation, which may trigger equipment failure and safety risks.DIN94 Split Pin Metric Carbon Steel Zinc Plated is a classic metric safety fastener designed to solve this anti-loosening problem. Following German DIN94 standard, this cotter pin is made of low carbon steel wire with zinc plated surface finish. It is a simple, low-cost and reliable locking component widely accepted by mechanical engineers worldwide.
This article explores its core working principle, typical application scenarios, selection tips and production quality control for different industrial projects.

Working Principle of Split Pin Locking

The locking logic of cotter pins is easy to understand but highly effective for dynamic load conditions. This cotter pin is installed by inserting the pin body through the aligned pre-drilled holes on shafts, clevis pins or bolt shanks. After penetration, installers bend the two legs of the split pin outward in opposite directions.

The bent legs will block the pin or nut from rotating, forming a passive mechanical lock. Unlike thread locker adhesives, this locking method can be inspected visually directly. Operators can quickly check whether the pin is intact and properly bent without disassembling the whole assembly. The good ductility of carbon steel ensures smooth bending without cracking during installation.

Comparison of Locking Fastener Solutions

Main Application Areas for Mechanical Locking

Many types of machinery require dependable safety locking on rotating and hinged joints. It serves as safety locking element for agricultural machinery, automotive auxiliary assemblies, hydraulic cylinders, construction machinery, conveyor systems and lifting equipment. It is commonly matched with clevis pins, wheel axles and hinge pins.

In these applications, the split pin prevents nuts and pins from rotating under continuous vibration and shock load. It effectively reduces unexpected equipment shutdown and lowers maintenance cost for end users. It is widely adopted in OEM production as well as equipment maintenance and repair projects.

You can find DIN94 Split Pin Metric Carbon Steel Zinc Plated in assemblies where safety is prioritized, such as lifting mechanisms and farm equipment linkages.

Material & Surface Treatment Comparison Table

Key Benefits for Mechanical Assembly

Engineers and procurement teams prefer this split pin for multiple practical reasons. It has strictly controlled dimensions according to DIN94 standard, so it can fit standard pre-drilled holes precisely. The zinc plated coating offers stable anti-rust performance under ordinary working conditions.

The product has no sharp burrs on cutting ends, avoiding scratches to mating metal parts during installation. The product range covers a full set of metric sizes from M1.5 up to M20, which can meet diverse specification requirements from different industrial projects.

Every batch will go through sampling inspection before packing, and DIN94 Split Pin Metric Carbon Steel Zinc Plated passes this quality check to guarantee stable quality for bulk order

Production & Quality Control Process

Every batch of fasteners goes through a complete set of inspection procedures before packing.

1. Raw material incoming inspection: Carbon steel wire will be checked for chemical composition and mechanical ductility to meet DIN standard requirements.

2. Forming process: Automatic wire cutting and pin forming, dimension sampling inspection during production.

3. Surface treatment: Zinc plating process, followed by post-treatment to improve rust resistance.

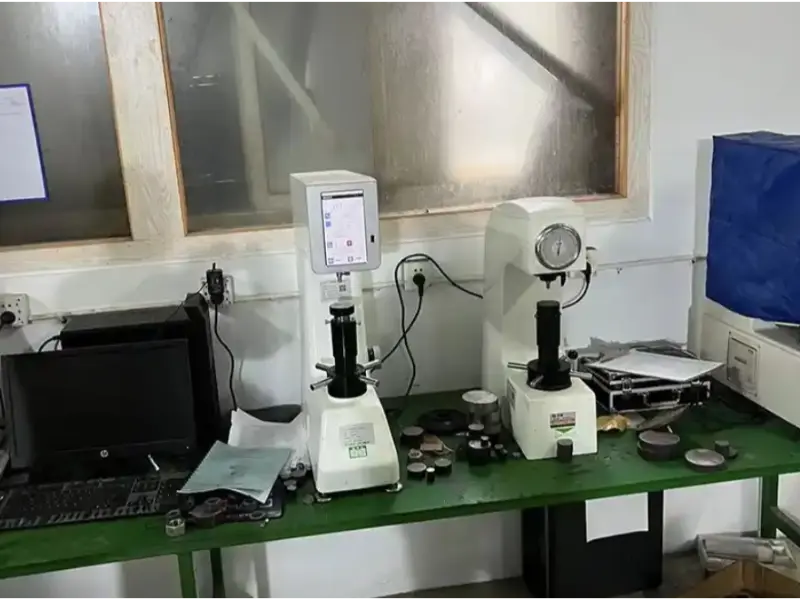

4. Final random inspection: Check pin dimension, surface finish and bending performance.

Packaging & Shipment Information

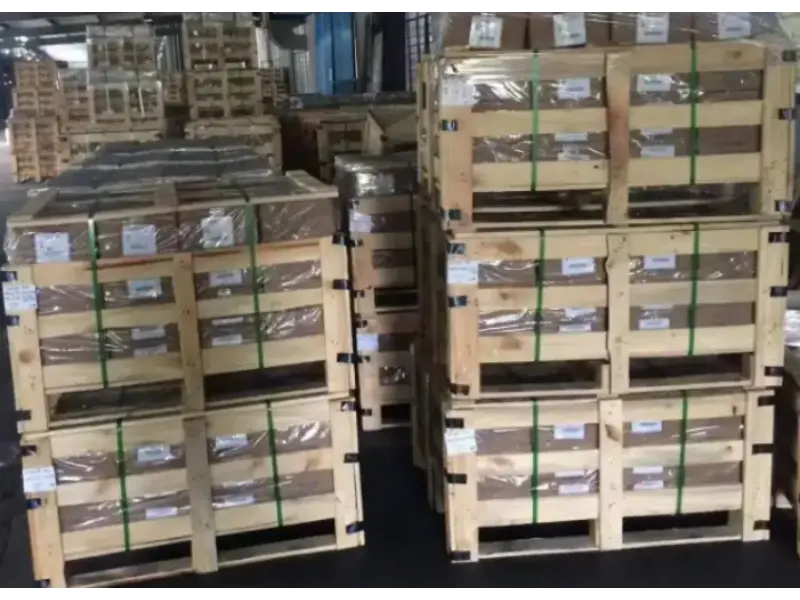

Proper packaging protects fastener surfaces and preserves mechanical integrity through long-distance logistics and handling. It supports flexible packaging schemes customized to buyer requirements. Products are packed in neutral export cartons.

We offer fumigation and palletizing service as requested. All cartons are sealed with waterproof tape and strapped for reinforcement. Our QC team performs final full visual inspection before container loading to filter damaged goods.

We support full container FCL and less than container LCL sea freight shipments. Custom private labels with your brand logo and company information can be printed upon request. Goods are neatly stacked on pallets inside containers to avoid squeezing, bending or surface scratches during sea or land transportation. Moisture-proof desiccants can be added inside cartons for humid destination ports to prevent rusting.

When arranging bulk shipment, many buyers choose DIN94 Split Pin Metric Carbon Steel Zinc Plated for its stable quality and competitive lead time.

Why Choose Ningbo Gangtong Zheli

Industrial fastener buyers look for suppliers that combine stable quality, technical support and flexible order arrangements. Our company focuses on metric standard fastener export for global industrial customers. We carry out full-process quality control from raw wire incoming inspection, forming, cutting, plating to final batch test.

Our sales and engineering team can offer fast technical consultation, helping you select suitable sizes and surface treatments matching your assembly drawings and working environment. Mixed-size combined orders are acceptable, and we can adjust production schedules flexibly to meet your delivery schedule. With rich export experience, our team is familiar with international inspection standards and overseas customs requirements to ensure smooth order delivery.

Extended Selection Tips

When selecting cotter pins for your project, you need to consider the operating environment, vibration intensity and service life expectations at the same time.

For indoor equipment with common vibration, the carbon steel zinc plated type is a cost-effective choice. For coastal or humid outdoor environments, stainless steel cotter pins are recommended for better anti-corrosion ability.

A full size range makes DIN94 Split Pin Metric Carbon Steel Zinc Plated convenient for one-stop sourcing of mechanical locking components.

FAQ

Q1: Can the split pin be reused after disassembly?

A: Normally, the split pin will be deformed after bending, so it is recommended to replace it with a new one during reassembly for safety consideration.

Q2: What is the difference between carbon steel zinc plated split pin and stainless steel version?

A: Carbon steel zinc plated type is cost-effective for general environment. Stainless steel version provides superior corrosion resistance for harsh and humid working conditions.

Q3: Can you provide customized marking or private label service?

A: Yes, private labels with your brand information can be printed on cartons as requested.

Q4: What documents can be supplied with shipment?

A: Commercial invoice, packing list and MTC material test certificate are available on request.
