DIN6319 Spherical Washer Convex And Concave Self Aligning Washer: Fix Assembly Angular Deviation

What Causes Angular Deviation in Bolted Joints

In heavy industrial manufacturing and precision equipment assembly, angular deviation of bolt connections is one of the most overlooked but influential hidden problems. Uneven machined surfaces, welding deformation, equipment foundation settlement, and manual installation errors will all lead to non-parallel fitting planes. Under long-term heavy load and mechanical vibration, tiny tilt angles will continuously generate bending stress on bolts, resulting in thread wear, bolt fatigue, loosening, and even sudden fracture.

Most traditional assembly solutions rely on ordinary flat washers or spring washers to assist fastening. However, these conventional fasteners only play a simple role of pressure dispersion and anti-loosening. They have no angle compensation capability at all and cannot eliminate eccentric bending force. For high-precision molds, hydraulic equipment and heavy steel structure facilities, relying on ordinary washers will greatly reduce assembly stability and shorten the overall service life of the equipment. DIN6319 Spherical Washer Convex And Concave Self Aligning Washer perfectly solves the long-standing pain point of assembly angular deviation in the industry. Its unique convex-concave paired spherical structure can actively adapt to inclined installation surfaces, convert irregular bending stress into uniform axial pressure, and fundamentally protect the safety and stability of bolt connections.

DIN6319 Washer VS Traditional Washers: Core Performance Comparison

To help engineers and purchasers accurately select fasteners for different working conditions, we make an in-depth performance comparison between self-aligning spherical washers and ordinary flat washers/spring washers. The structural defects of traditional washers are fully exposed in heavy-duty and tilted assembly scenarios, while the structural advantages of DIN6319 sets are fully reflected.

Comparison Item	Ordinary Flat Washer / Spring Washer	DIN6319 Spherical Washer Set
Angle Compensation Ability	None, cannot adapt to tilted surfaces	Support 3-4° angle deviation compensation, active self-aligning
Bolt Stress State	Easy to produce bending stress and eccentric load	Eliminate bending force, pure axial stress bearing
Vibration Resistance	Poor, easy to loosen under long-term vibration	Stable fitting, effectively resist vibration loosening
Service Life	Short, easy to cause bolt fatigue damage	Long service life, reduce equipment maintenance frequency
Applicable Scenarios	Only suitable for flat & light-load assembly	Professional for heavy-load, uneven and tilted assembly

It is obvious from the comparison that traditional washers can only meet the most basic fastening needs. Once facing uneven assembly surfaces and heavy load working conditions, they cannot offset structural errors. In contrast, DIN6319 Spherical Washer Convex And Concave Self Aligning Washer is professionally designed for industrial error compensation. It can automatically adjust the fitting angle according to the actual installation state, ensuring that each bolt is stressed vertically and evenly, which is an irreplaceable core advantage in high-standard industrial assembly.

Core Working Principle of Spherical Washer Sets

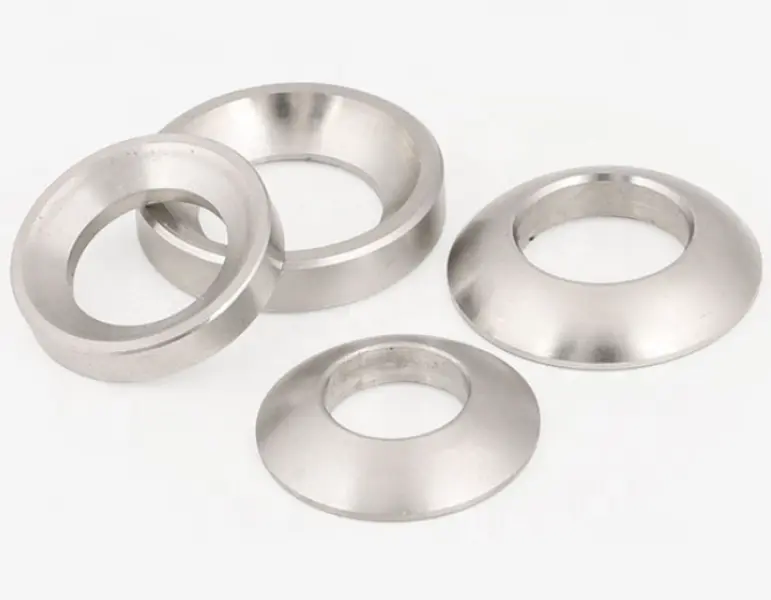

A complete DIN6319 self-aligning washer set is composed of matched C-type convex washer and D-type concave washer. After precision forging and ultra-fine grinding, the spherical contact surface is smooth and flat, with high fitting accuracy and flexible sliding performance. During equipment installation, when the mounting plane is tilted or offset, the convex and concave curved surfaces can slide freely to complete angle self-correction, fully fitting the bolt and the pressed workpiece surface.

This working principle completely changes the forced assembly state of traditional flat gaskets. It avoids bolt torsion and bending caused by forced calibration of installation errors, ensures that the connection system is always in the optimal stress state, and greatly improves the overall rigidity and stability of mechanical equipment.

Material Grade	Maximum Continuous Working Temp	Recommended Torque Factor	Applicable Environment Tips
C45 Carbon Steel	220℃	0.14~0.18	General industrial, mold internal assembly
A2 Stainless Steel	300℃	0.18~0.22	Humid indoor, ordinary anti-corrosion scene
A4 Stainless Steel	315℃	0.19~0.23	Coastal salt spray, chemical corrosive environment

Material & Surface Treatment Practical Value

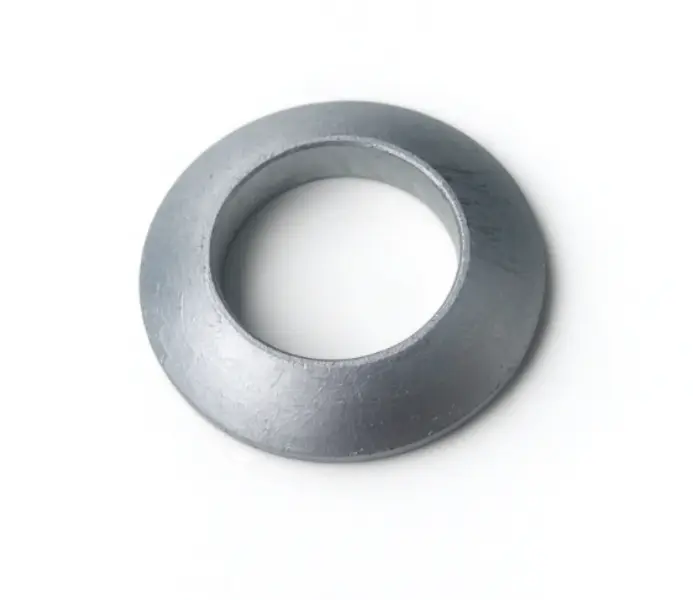

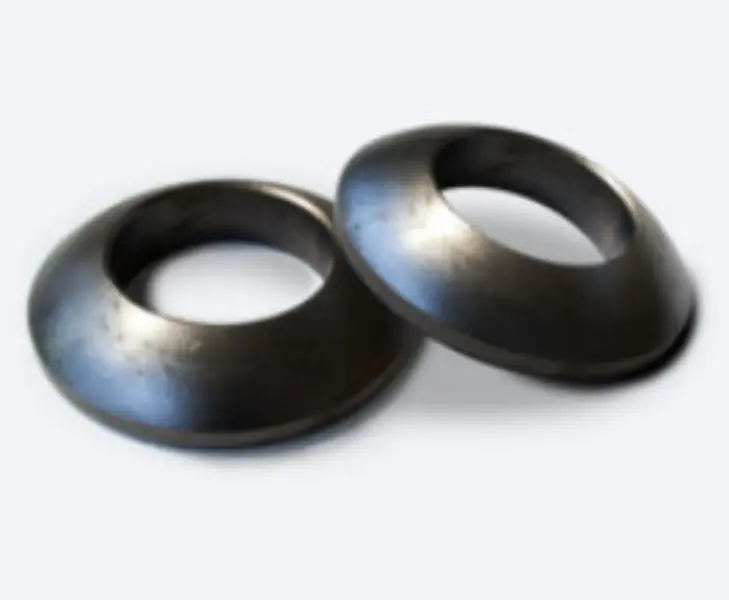

Different material and surface treatment configurations give the washers targeted environmental adaptability. DIN6319 Spherical Washer Convex And Concave Self Aligning Washer adopts diversified material options. C45 carbon steel washers with white blue zinc plating have uniform coating and stable anti-rust performance, suitable for most outdoor and general industrial assembly scenarios. Black oxide treated products feature low friction and no reflective glare, which is more suitable for precision mold internal clamping and avoids affecting mold processing accuracy. A2/A4 stainless steel washers abandon surface plating protection, with inherent oxidation and corrosion resistance, perfectly adapting to high humidity, salt spray and harsh chemical working conditions.

All materials are sourced from certified large steel mills, with stable mechanical properties and reliable hardness, ensuring that the washers will not deform or fail under long-term heavy pressure. Customized surface treatments and special-size products are supported to meet personalized engineering needs.

Typical Application Scenarios

With its powerful angle correction and stress balance performance, DIN6319 Spherical Washer Convex And Concave Self Aligning Washer is widely used in high-precision and heavy-duty industrial fields. In the mold industry, repeated clamping and thermal expansion and contraction will cause mold plate deformation and flatness deviation, and the self-aligning washer set can automatically compensate for tiny angle errors to keep mold clamping force stable.

In heavy machinery, hydraulic equipment, steel structure engineering and generator base assembly, foundation settlement and equipment installation deviation are common. The DIN6319 washer set can effectively resolve the problem of uneven stress on bolt joints, prevent equipment vibration and loose connection, and ensure the long-term stable operation of mechanical systems. It is a necessary optimized fastening accessory for mechanical design and equipment upgrading.

Standardized Packaging & Export Shipping Guarantee

As a professional export-oriented fastener manufacturer, Ningbo Gangtong Zheli Fasteners Co., Ltd. adopts strict export-grade standardized packaging for all finished washers to ensure product integrity during long-distance cross-border transportation. Conventional products are packed with waterproof and moisture-proof plastic inner bags, matched with thickened reinforced carton outer packaging, which can effectively prevent product surface rust, scratch, collision and deformation.

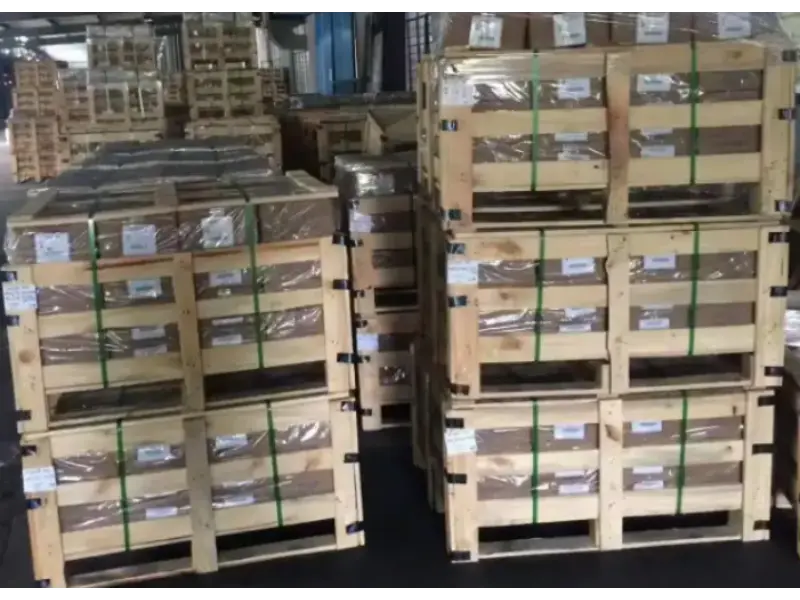

For bulk export orders and high-standard customer orders, we support customized wooden box packaging and pallet packaging to further enhance transportation safety. All packaging can support customized customer brand logos and exclusive labels to meet brand export and warehouse management needs. Before each delivery, our team will conduct full inspection on product appearance, size and quantity for DIN6319 Spherical Washer Convex And Concave Self Aligning Washer, sort and pack strictly in accordance with international export standards, and complete supporting documents collation, ensuring safe and barrier-free delivery of goods to global customers.

Why Choose Ningbo Gangtong Zheli Fasteners

We focus on the R&D and production of high-standard DIN standard fasteners, with mature production technology and complete quality inspection system. All DIN6319 Spherical Washer Convex And Concave Self Aligning Washer products are produced in strict accordance with German industrial standards, with precise dimensional tolerance and excellent interchangeability.

From raw material incoming inspection, precision processing, surface treatment to finished product packaging and delivery, every link implements standardized quality control. We provide sample testing services, full-size customization from M6 to M64, stable inventory supply and professional pre-sales and after-sales technical support. With reliable product quality and thoughtful export service, we have established long-term cooperative relationships with customers in Europe, America, Southeast Asia and other regions, winning wide recognition in the global industrial fastener market.
