ASTM A563 Heavy Hex Nut Carbon Steel Heavy Hexagon Nut: Standard Matching Structural Nut for ASTM A325 Bolts

Overview of Structural Fastener Assembly for North‑American Steel Projects

Within the bolt‑nut connection assembly system for North‑American steel‑structure engineering, alongside bolts and washers, ASTM A563 Heavy Hex Nut Carbon Steel Heavy Hexagon Nut undertakes critical load‑bearing responsibilities. Formulated under ASTM A563 specification, it forms a complete high‑strength fastening kit together with ASTM A325 heavy hex structural bolts and F436 hardened washers, widely used in commercial steel buildings, highway steel bridges, transmission tower frames and heavy‑duty steel truss projects.

Many project purchasers only focus on bolt parameters yet overlook nut grade selection. Using unqualified nut products may trigger safety risks including thread stripping, local plastic deformation and loosened joints under long‑term alternating loads. Different from ordinary commercial hex nuts available on the market, structural heavy hex nuts adopt enlarged across‑flat dimension and increased nut thickness. Optimized structural design greatly improves proof‑load performance and deformation‑resistance under high‑torque tightening conditions, complying with bolting specifications of AISC and RCSC for steel‑structure connection joints.

During actual project procurement, buyers need to confirm nut grade, thread tolerance, surface finish and whether over‑tapped threads are required for galvanized items according to bolt specifications, on‑site working conditions and drawing requirements. Ningbo Gangtong Zheli Fasteners Co., Ltd. supplies full‑range UNC inch sizes ranging from 1/4" to 4 inches, fully meeting mainstream specification demands from steel‑structure general contractors and fastener distributors worldwide.

Grade Matching Logic Between Nuts and Structural Bolts

ASTM A563 Heavy Hex Nut Carbon Steel Heavy Hexagon Nut is mainly divided into Grade C and Grade DH for mating with A325 bolts. In accordance with ASTM A563 specification, different grades correspond to distinct proof‑load stress and hardness ranges. Random substitution between grades is prohibited without approval from project engineers.

Grade C is quenched‑and‑tempered medium‑carbon‑steel heavy hex nut with stable proof‑load values for conventional indoor steel‑structure connections. Grade DH adopts higher quenching‑and‑tempering parameters to achieve enhanced proof‑load capacity and hardness. It is the grade designated by most North‑American engineering projects to pair with hot‑dip galvanized A325 bolts. When both bolts and nuts receive hot‑dip galvanizing treatment, thick zinc coating will occupy thread clearance. Without over‑tapping, thread jamming will occur during on‑site assembly and delay construction progress.

For weathering‑steel A325 Type3 bolts, Grade DH3 weathering‑steel nuts shall be selected to avoid galvanic corrosion caused by dissimilar‑metal contact. Without special permission shown on project drawings, Grade C nuts shall never be used with hot‑dip galvanized A325 bolts. Thread stripping hazards may still occur under high pre‑tightening force if improper grade combination is adopted.

Surface Finish Selection Based on Actual Service Environment

Project teams can select diversified surface treatments for ASTM A563 Heavy Hex Nut Carbon Steel Heavy Hexagon Nut to adapt to working conditions with varied humidity, temperature and corrosion levels. Each process has its own applicable limits, and procurement decisions shall not be made merely based on price.

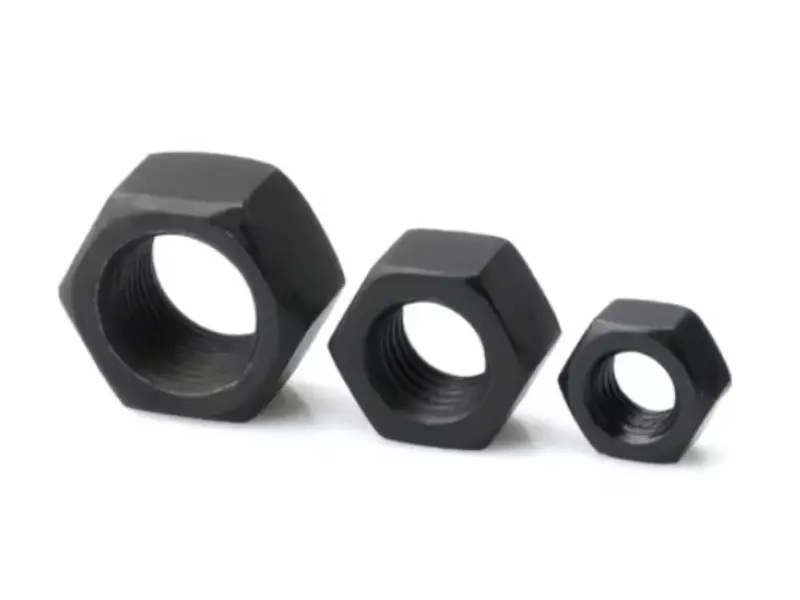

Plain nuts retain original metallic texture of carbon steel without protective coating, suitable for customers who will apply painting or other anti‑corrosion solutions after installation. Treated by black oxide process, nuts form compact oxide film on their surface. Temporary rust protection is achieved with matching anti‑rust oil. Thanks to cost advantages, it is widely adopted for steel‑structure projects in enclosed indoor workshops. Featuring inherent corrosion resistance of stainless‑steel substrate, bright stainless‑steel finish fits humid indoor mechanical assembly scenarios instead of long‑term outdoor exposure. Hot‑dip galvanizing creates thick zinc protective layer resisting coastal salt‑spray erosion. HDG DH‑grade nuts must go through over‑tapping to guarantee smooth assembly with HDG A325 bolts.

It is worth noting that no single surface finish fits all working scenarios. During procurement evaluation, project location, atmospheric corrosivity and designed service life shall be taken into comprehensive consideration so as to pick proper products matching project environments.

Production Process and Whole‑Process Quality Control Mechanism

From raw‑material incoming inspection to finished‑product delivery, Ningbo Gangtong Zheli Fasteners Co., Ltd. implements standardized full production workflows for ASTM A563 Heavy Hex Nut Carbon Steel Heavy Hexagon Nut. Whole‑process quality management covers chemical composition verification of steel materials, hot forging, quenching‑and‑tempering heat treatment, thread tapping, surface treatment, multi‑item finished‑product inspection and batch traceability management.

Medium‑carbon‑steel raw materials are sourced from certified large‑scale steel mills. Chemical analysis is conducted for every incoming batch to control contents of carbon, manganese, sulfur, phosphorus and other elements. Excessive impurity elements are prevented from impairing mechanical performance at source. After hot forging, nuts receive quenching and tempering heat treatment to reach target hardness and proof‑load indexes. Hardness and toughness get balanced to avoid brittle fracture under impact loads. High‑precision die‑tapping equipment is adopted for thread processing to satisfy UNC thread pitch and Class 2A tolerance requirements, ensuring good interchangeability with A325 bolts from different manufacturers.

Finished‑product inspection includes appearance screening, dimensional sampling check, thread go‑no‑go gauge test, Brinell hardness test and proof‑load test. All inspection records are permanently archived for batch traceability. Official COA material test certificates can be provided for each batch to satisfy requirements for international project bidding, third‑party audit and cross‑border customs clearance. Defective goods are fully sorted and isolated to prevent faulty items from being mixed into shipped finished products.

Practical Installation & On‑Site Application Suggestions for Engineering Projects

As structural fasteners, end‑service performance of ASTM A563 Heavy Hex Nut Carbon Steel Heavy Hexagon Nut depends not only on product quality itself but also on on‑site construction operations. Even high‑quality nuts will bring joint safety risks under non‑standard installation.

First, verify full assembly sets before installation. Confirm nut grade, bolt grade, washer type and surface finish are fully consistent with drawing specifications. Do not mix fasteners of different grades or different surface treatments within one group of connection joints. For hot‑dip galvanized assembly kits, confirm nuts have been over‑tapped. Reject galvanized nuts without over‑tapped threads to avoid thread damage caused by forced screwing‑in.

Second, follow standardized tightening procedures. Construction teams can adopt turn‑of‑nut method or calibrated torque wrench tightening method according to project‑approved schemes. Do not back‑off nuts for position adjustment after pre‑tightening is finished. This operation will reduce actual pre‑load force and create hidden safety hazards. Nuts with scratched threads, deformation or surface cracks shall be replaced timely. Damaged fastener components must not be reused for load‑bearing structural joints.

This series of heavy hex nuts are widely used for beam‑column connections of steel‑frame workshops, splice‑plate joints of steel bridges, matching foundation anchor bolts for transmission towers and connections of large‑scale steel trusses. For critical load‑bearing joints in infrastructure projects, batch sampling inspection is recommended for incoming goods before mass installation to verify mechanical‑property compliance of complete fastener sets.

Custom Service, Packaging and Global Supply

For personalized engineering requirements, ASTM A563 Heavy Hex Nut Carbon Steel Heavy Hexagon Nut supports multiple custom processing options. For large‑scale overseas steel‑structure projects, apart from standard specifications, we provide customized solutions such as special thread parameters, over‑tapped HDG nuts, customer logo marking and special batch‑number stamping. All custom‑made products are inspected in accordance with ASTM standards and complete batch COA reports are available.

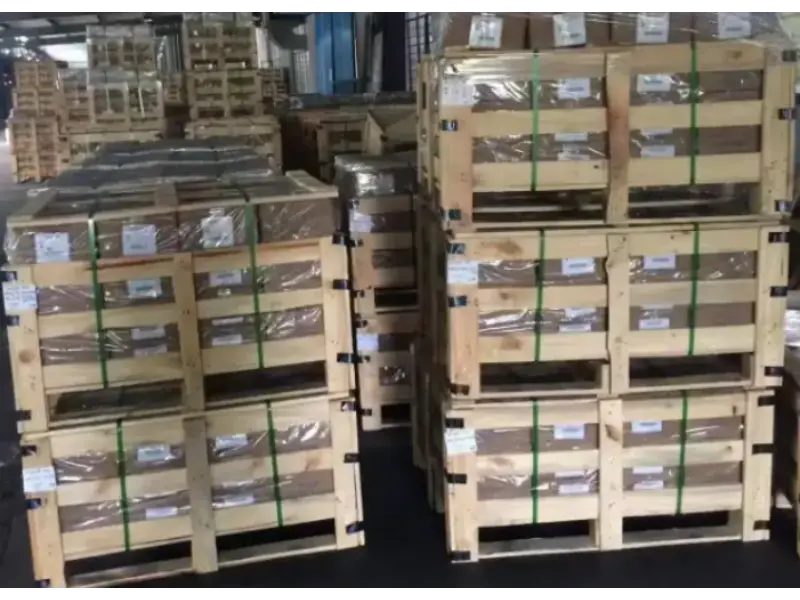

Export‑grade moisture‑proof solutions are applied for packaging. Products are strictly sorted by specification, grade and surface finish. Waterproof inner plastic bags isolate moisture, while outer layers adopt thickened five‑ply compression‑resistant cartons. For large‑volume overseas project orders, pallet packaging with stretch‑film reinforcement is available for long‑distance ocean transportation. Brand LOGO, batch numbers and specification marks can be printed on outer cartons upon customer requests. Complete sets of documents including packing lists and test reports are prepared for customs clearance.

Benefiting from stable batch quality, comprehensive specification inventory and mature export support services, our manufactured goods have been shipped to multiple countries and regions worldwide, serving steel‑structure general contractors, trade distributors and steel‑structure fabricators. Should you have inquiries or technical questions regarding this product, please feel free to contact our sales team.

Why Choose Ningbo Gangtong Zheli Fasteners Co., Ltd.

We are a specialized manufacturer focusing on American‑standard structural fastener production and export. Equipped with mature forging lines, complete heat‑treatment facilities and standardized in‑house inspection laboratory, we are deeply familiar with ASTM specifications and North‑American steel‑project requirements.

Apart from standard stock items, we deliver custom services covering special thread parameters, over‑tapped threads for hot‑dip galvanized products and customer logo marking. Every production batch goes through strict multi‑dimensional inspection before delivery. Supported by stable batch‑to‑batch quality, competitive factory‑direct pricing and complete export‑oriented service system, our fastener products have won long‑term trust from global steel‑structure contractors, fabricators and fastener distributors.

FAQ

Q1: Which bolt shall be matched with ASTM A563 heavy hex nut?

A1: It is the standard matching nut for ASTM A325 heavy hex structural bolts. Grade C fits plain or black‑oxide A325 Type1, while Grade DH is recommended for hot‑dip galvanized A325 bolts.

Q2: Is over‑tapped thread required for HDG Grade DH nuts?

A2: Yes. Hot‑dip galvanizing builds up zinc layer on thread flanks. Over‑tapping is mandatory for HDG DH nuts to guarantee smooth assembly without thread jamming.

Q3: What surface finishes can you provide?

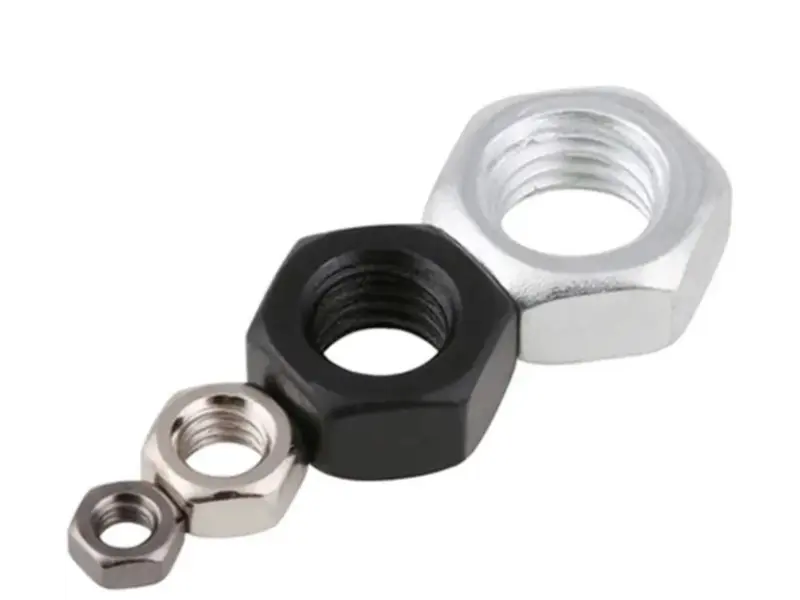

A3: Plain, black oxide, bright stainless steel and hot dip galvanized are available. Each finish is designed for distinct atmospheric corrosive conditions.

Q4: What documents can you offer for project acceptance?

A4: Each batch can supply COA material test certificate, hardness test report and dimensional inspection report for bidding, third‑party audit and customs clearance.

Q5: Do you support custom specifications or marking?

A5: Yes. Custom thread, over‑tapping treatment and customer logo stamping are acceptable for bulk project orders.
